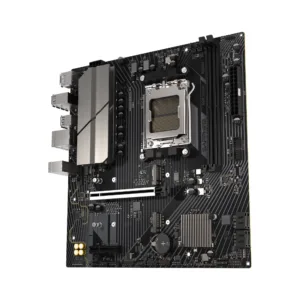

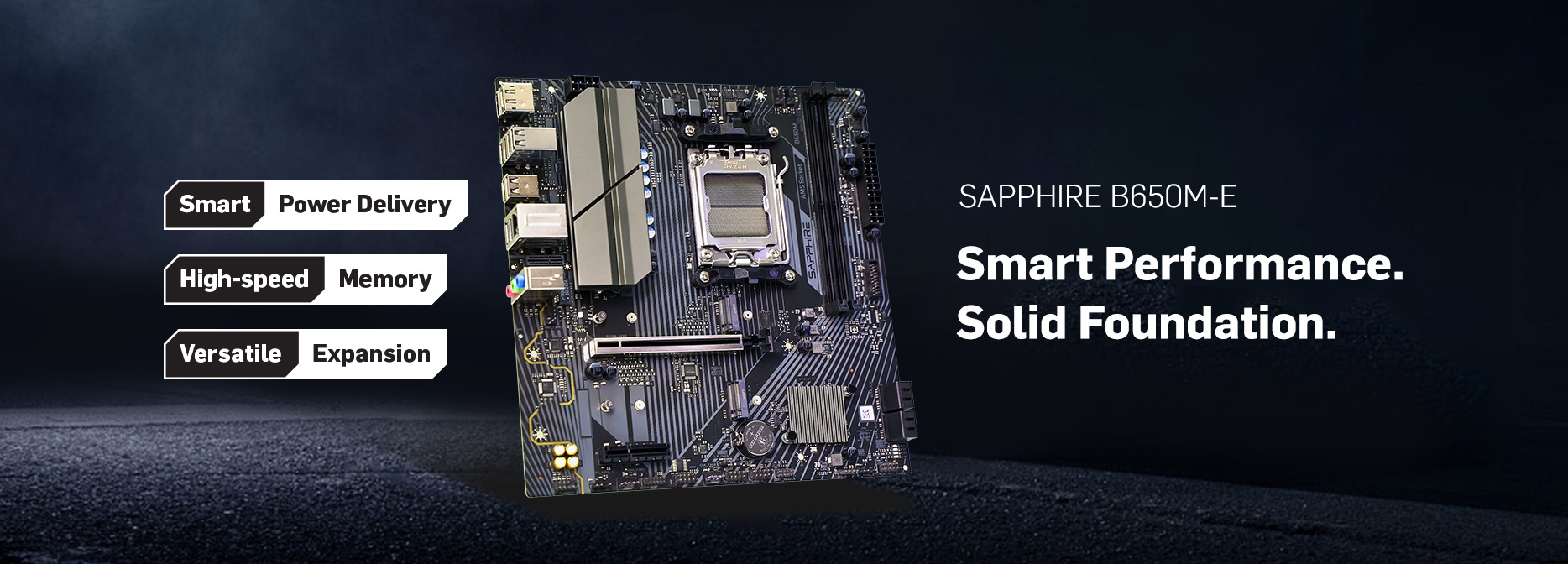

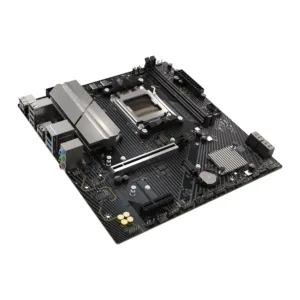

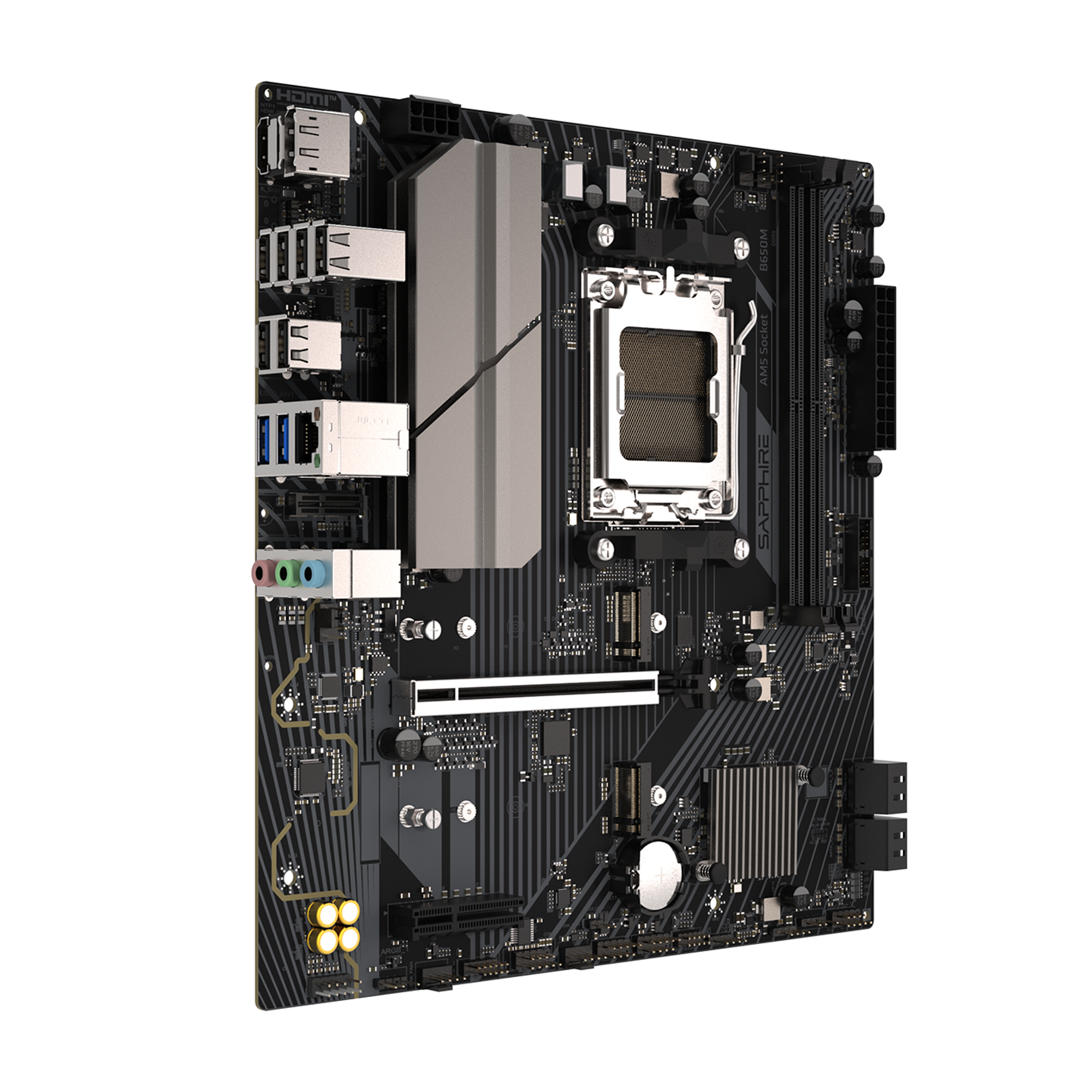

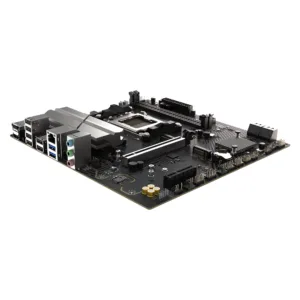

SAPPHIRE B650M-E MOTHERBOARD
The SAPPHIRE B650M-E is a feature-rich Micro-ATX motherboard designed to maximize the performance of AMD AM5 processors. With its robust 6+2+1 phase power design and support for high-speed DDR5-7600 memory, it provides a stable and future-ready platform for gaming and productivity.
Product Highlights:
- CPU Support: AMD AM5 CPU SUPPORT
- BIOS: SAPPHIRE CORE BIOS

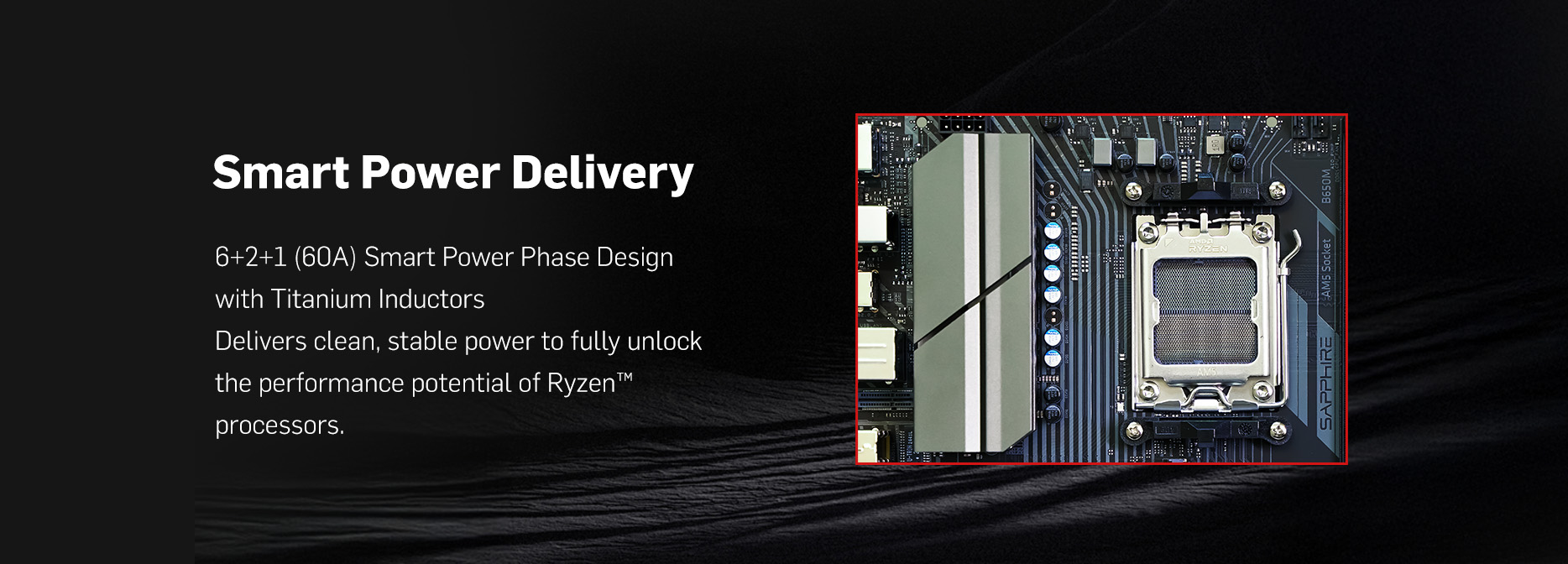

- Power Delivery: 6+2+1 Phase CPU Power, 60A Per Phase

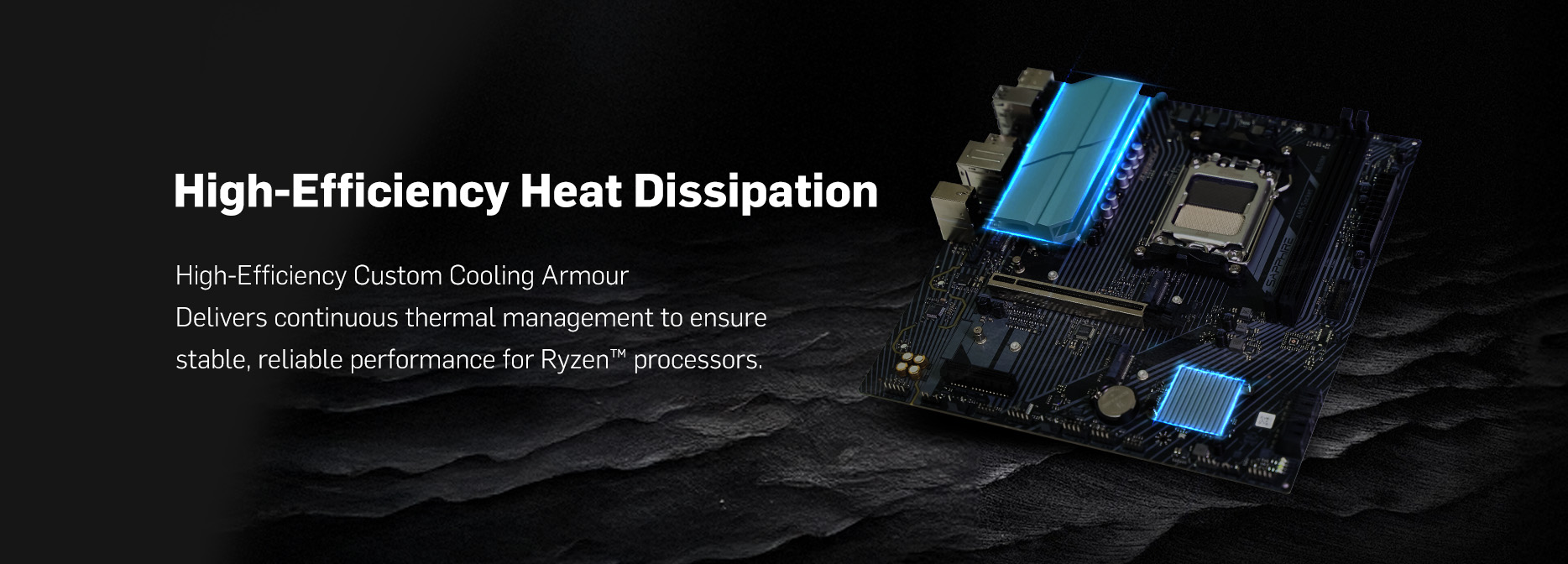

- Cooling: Robust VRM, M.2 and PCH Cooling
- Memory: Dual Channel, 7600 MHz Memory OC
- PCIe Expansion: PCI Express 4.0 x16
- M.2 Support: PCIe 5.0 M.2 Support
| Chipset | AMD® B650 |
| CPU Support | Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Memory Support | 2x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 96GB (2x 48GB), up to 7600 MHz(OC) |
| PCI-E Expansion Slots | 1x PCIe 4.0 x16, 1x PCIe 4.0 x4 |
| Display Connector | DisplayPort x1, HDMI x1 |
| Audio | Realtek® ALC897 HD Audio, 5.1 Channel |
| Network | Realtek® RTL8125BG 2.5 Gigabit Ethernet |
| Front USB Headers | 1x USB 3.2 Gen1 (2 x Type-A), 2x USB 2.0 (4 x Type-A) |

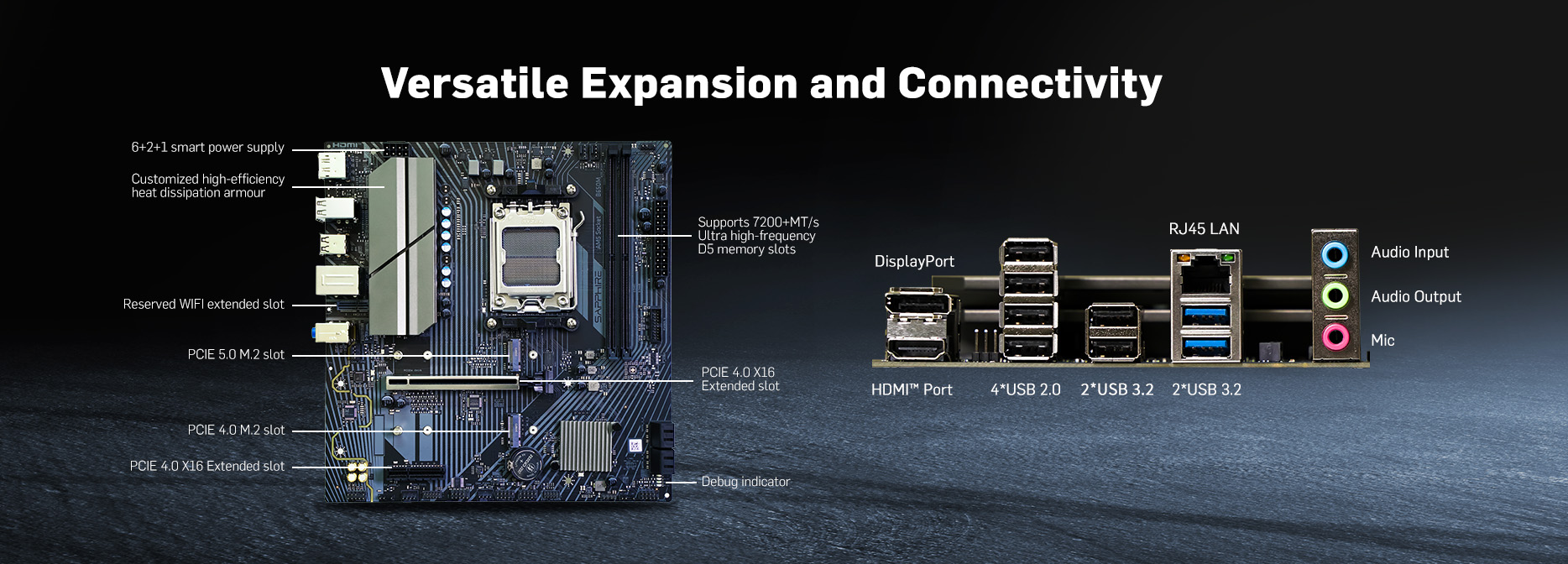

| Rear Ports | 1× DisplayPort, 1× HDMI™, 6× USB 2.0, 2× USB 3.2 Gen1 Type-A, 1× RJ45 LAN, 3× Audio Jacks |

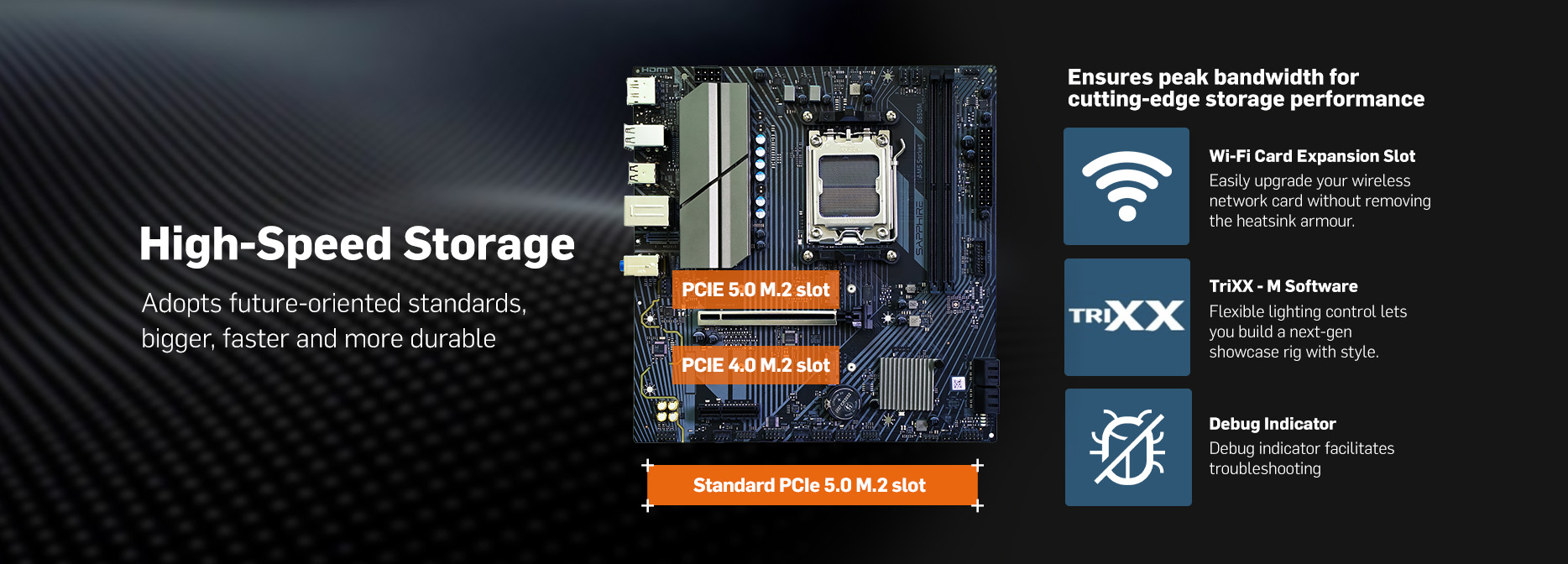

| Storage | 1x PCIe 5.0 M.2, 1x PCIe 4.0 M.2, 4x SATA |
| Dimensions | Micro-ATX, 244x235mm |
| Debug LED | DRAM: Yellow, CPU: Red, GPU: White, Boot: Green |
