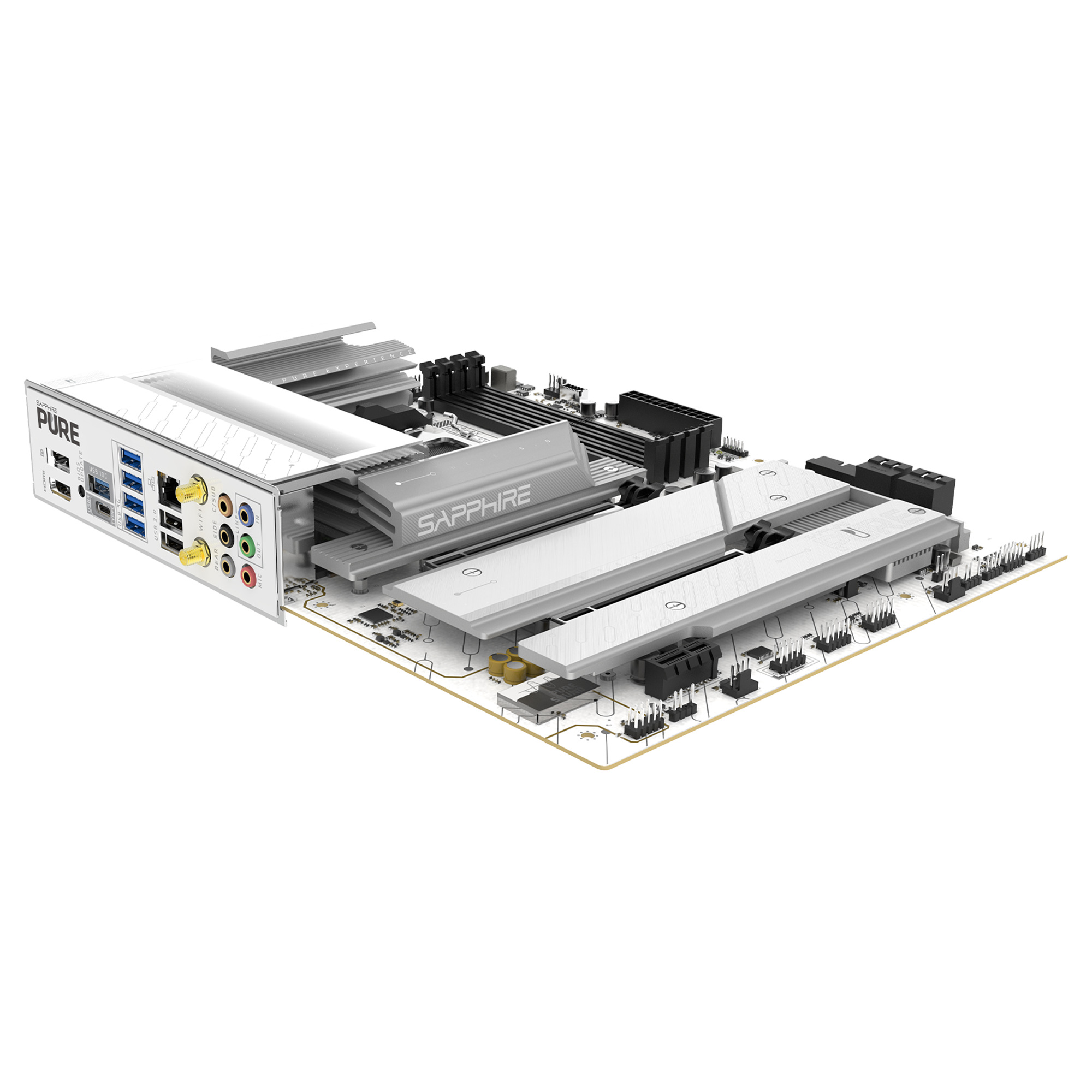

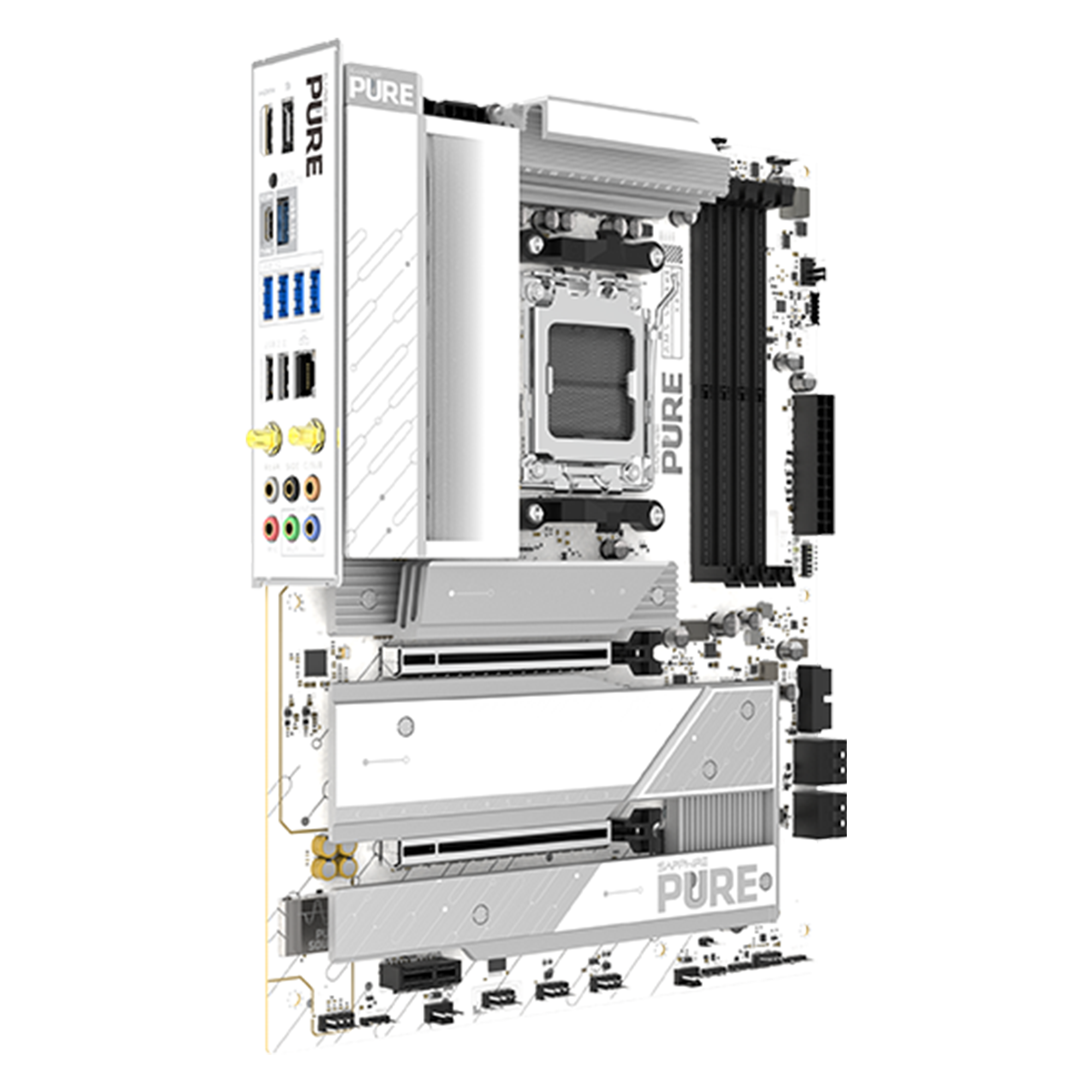

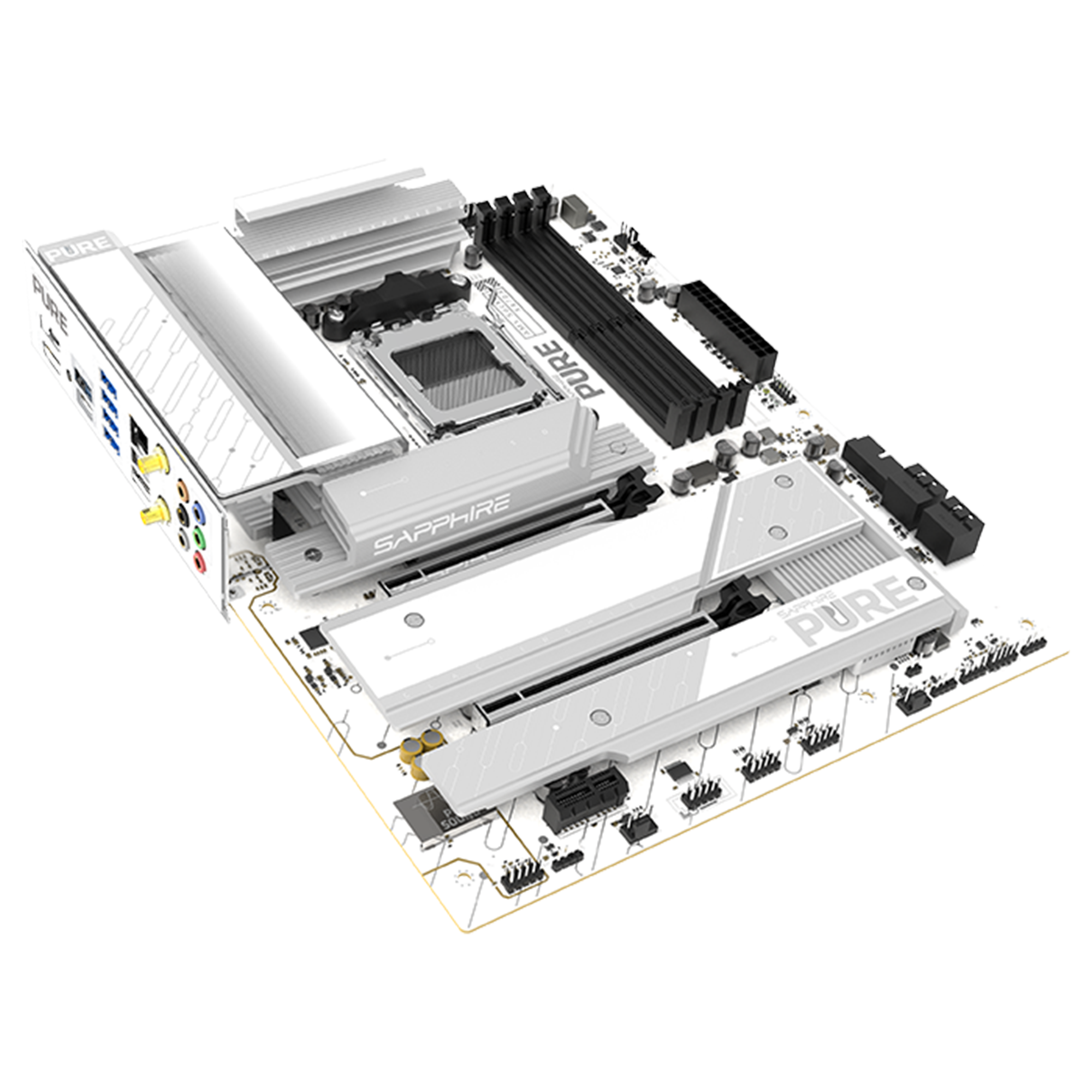

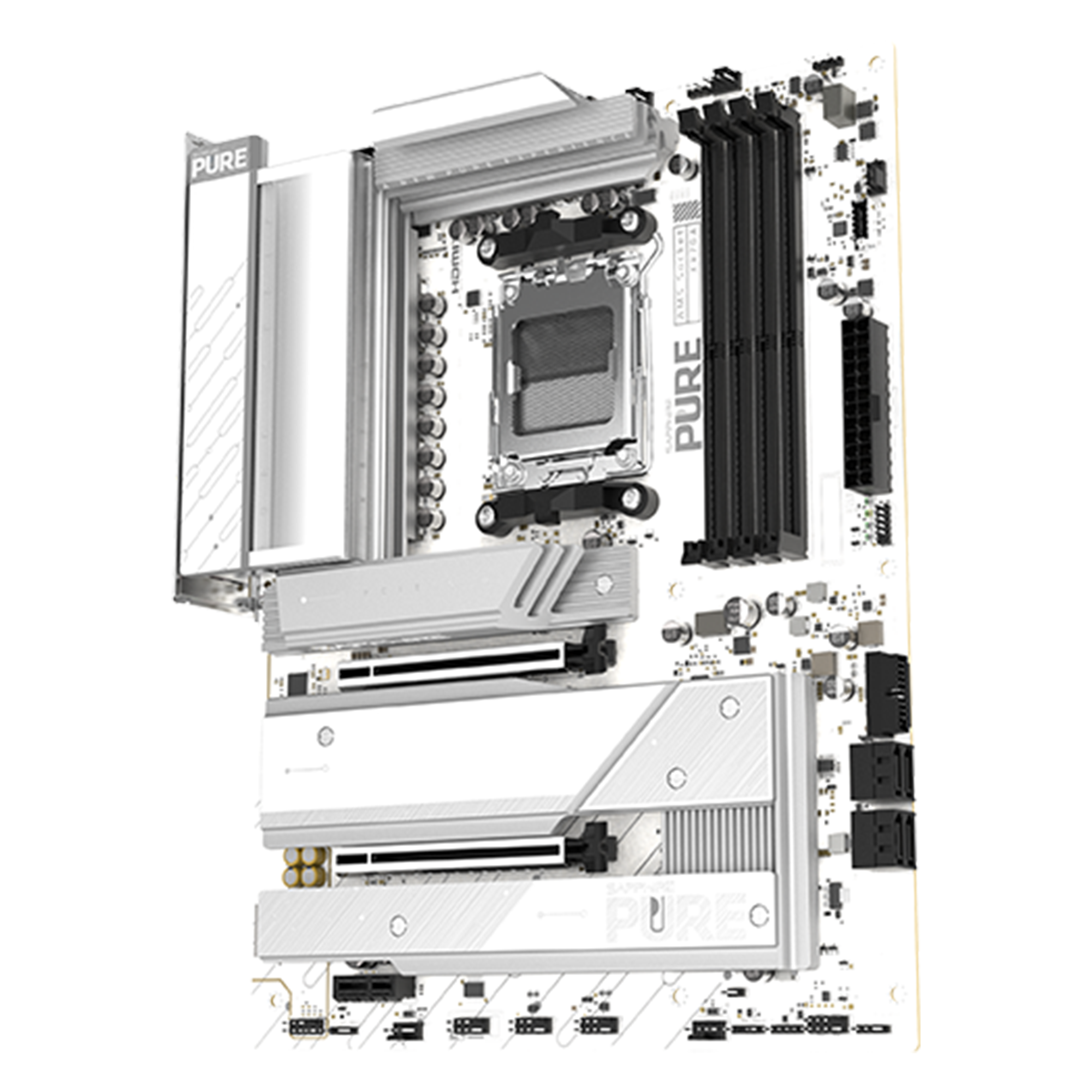

SAPPHIRE PURE X870A WIFI 7 MOTHERBOARD
The Sapphire PURE X870A WIFI 7 motherboard offers a powerful platform for AM5 Ryzen processors, featuring a robust 16+2+1 phase power design. It supports blazing-fast 8400 MHz DDR5 memory and next-gen PCIe 5.0 connectivity for ultimate performance.
Product Highlights:
- CPU Support: AMD AM5 CPU SUPPORT
- BIOS: SAPPHIRE CORE BIOS

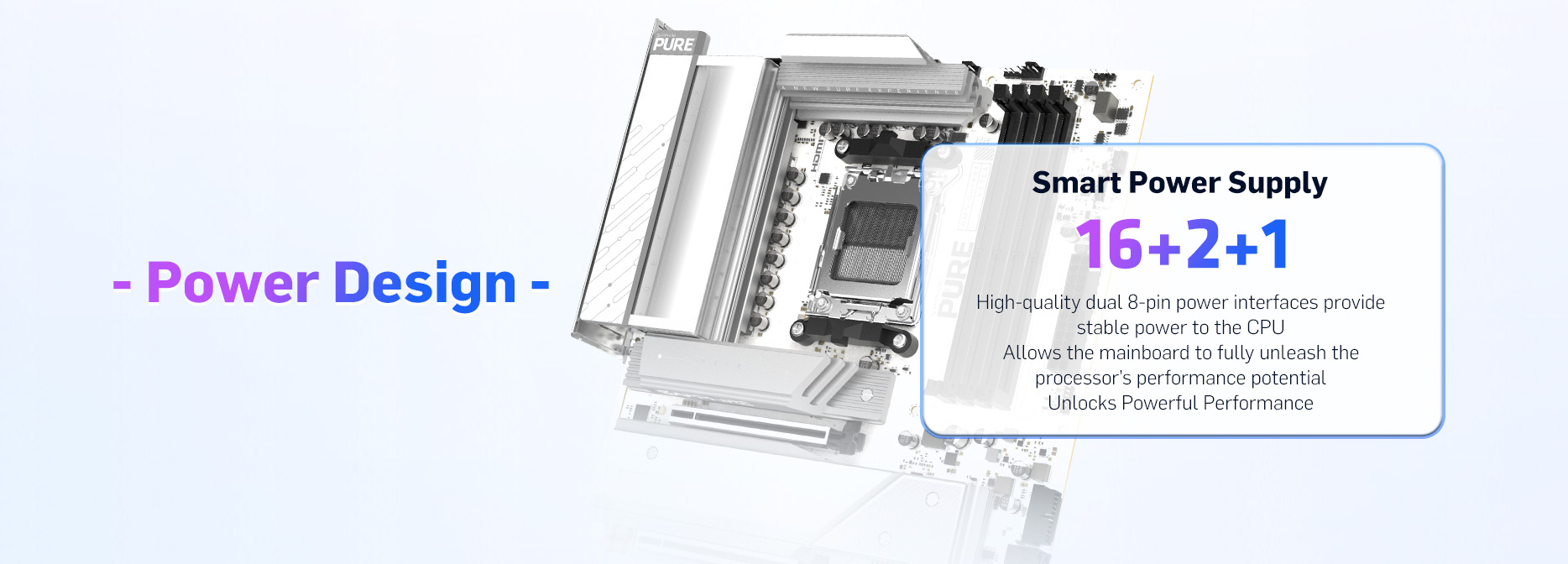

- Power Delivery: 16+2+1 Phase CPU Power, 55A Per Phase,

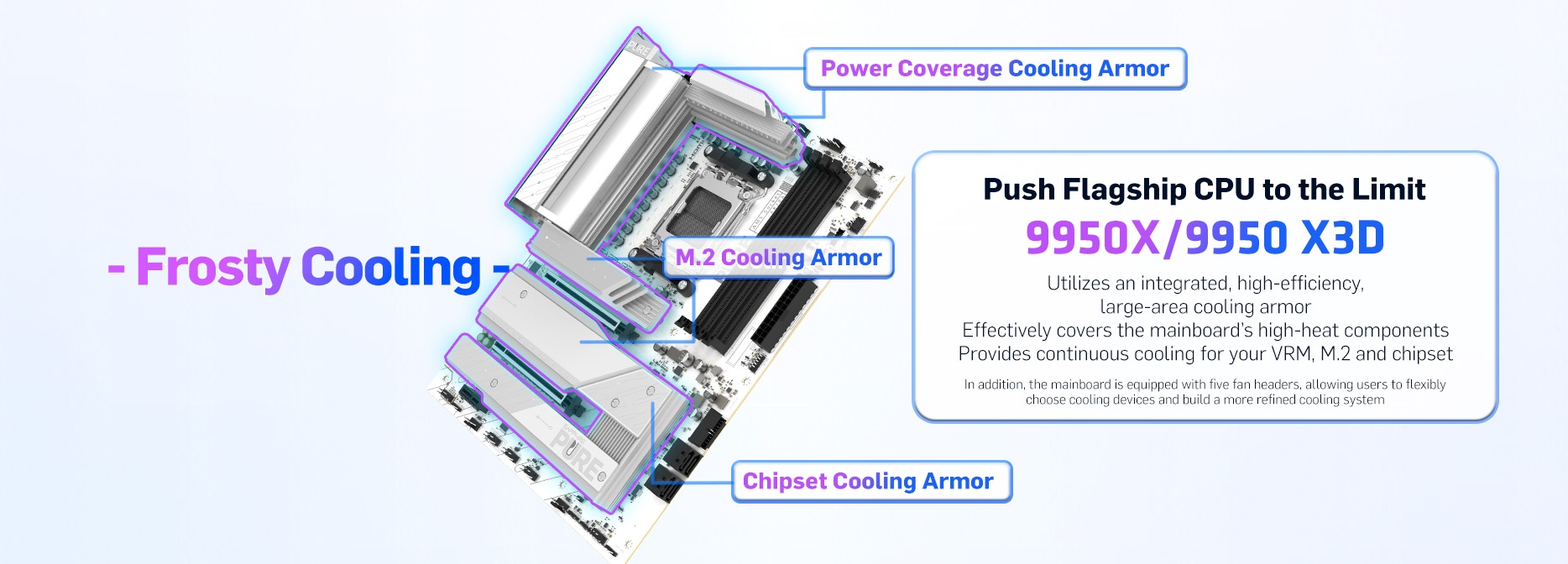

- Cooling: Robust VRM, M.2 and PCH Cooling

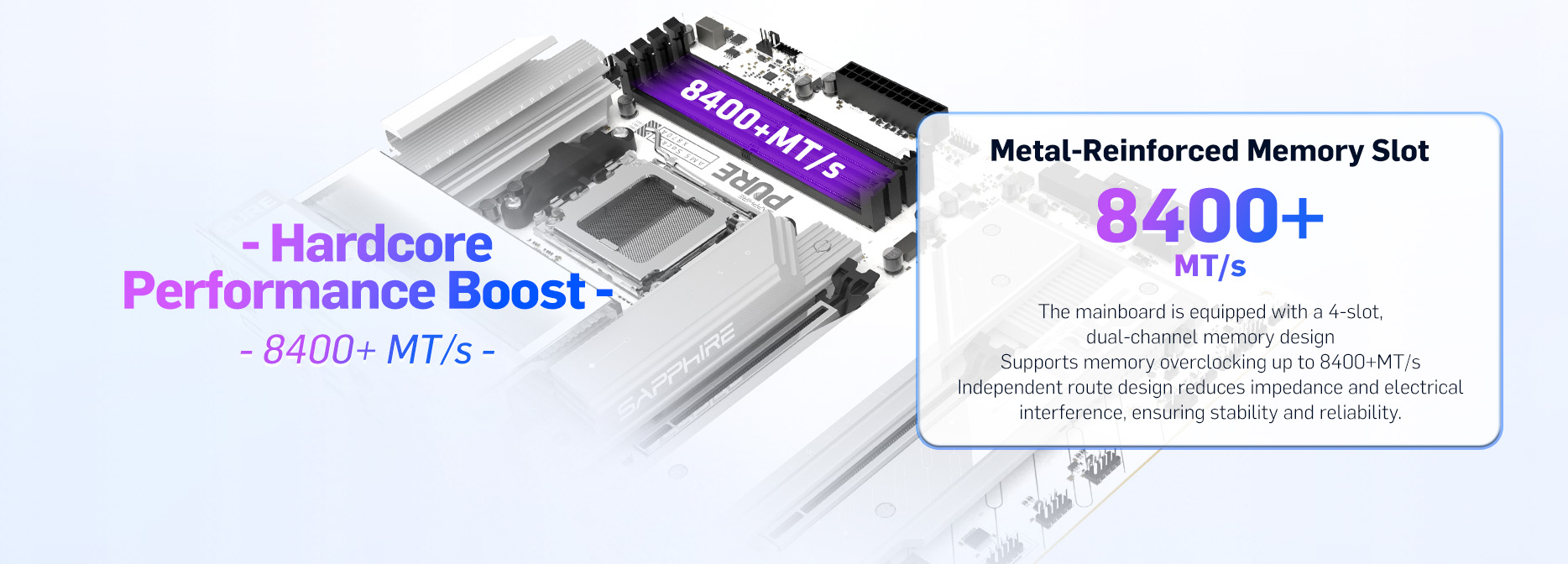

- Memory: Dual Channel, 8400 MHz Memory OC
- Networking: WIFI 7 Support
- Expansion: PCI Express 5.0 x16
- Storage: PCIe 5.0 M.2 Support
- Diagnostics: Debug LED
| Chipset | AMD® X870 |
| CPU Support | Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Memory Support | 4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8400 MHz(OC) |

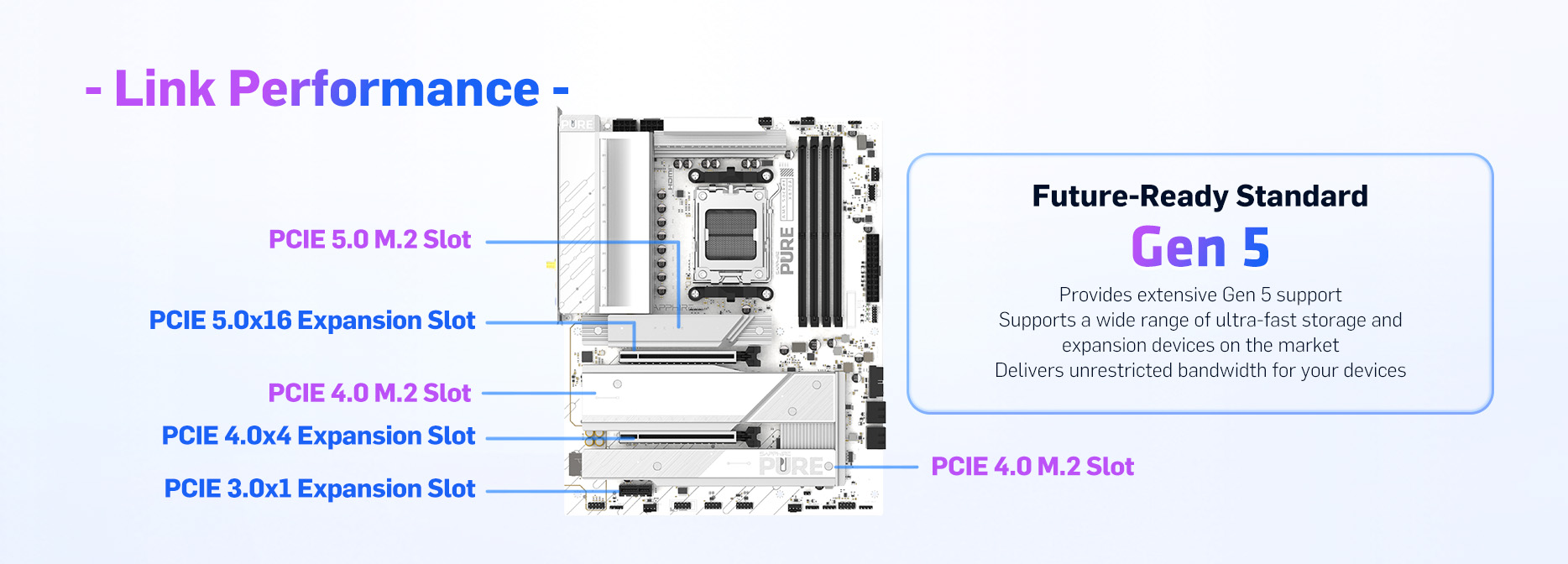

| PCI-E Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4 in 16x slot, 1x PCIe 3.0 x1 in 1x slot |
| Display Connector | DisplayPort x1, HDMI x1 |
| Audio | Realtek® ALC897 HD Audio, 7.1 Channel |

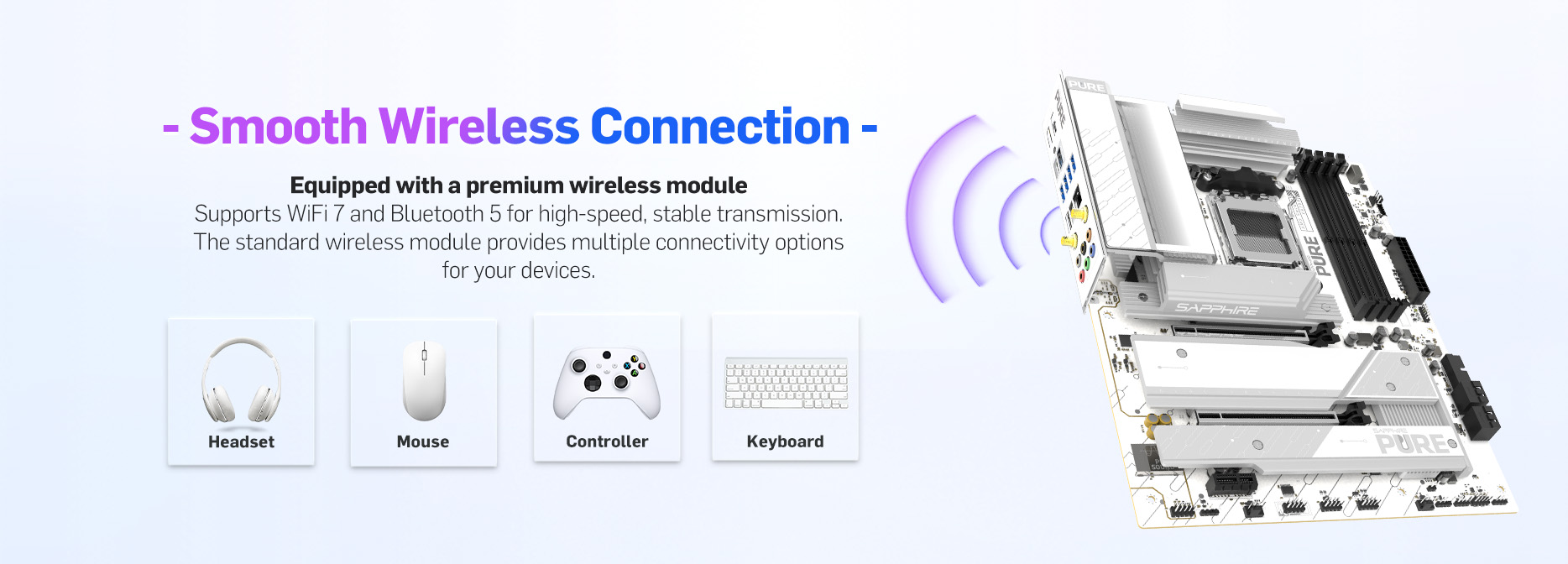

| Network | Realtek® RTL8126 5 Gigabit Ethernet M.2 WiFi 7 Module, Support 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5GHz / 6GHz band, Bluetooth 5.4 Support |
| Front USB Headers | 1x USB 3.2 Gen2 (1 x Type-C), 1x USB 3.2 Gen1 (2 x Type-A), 2x USB 2.0 (4 x Type-A) |

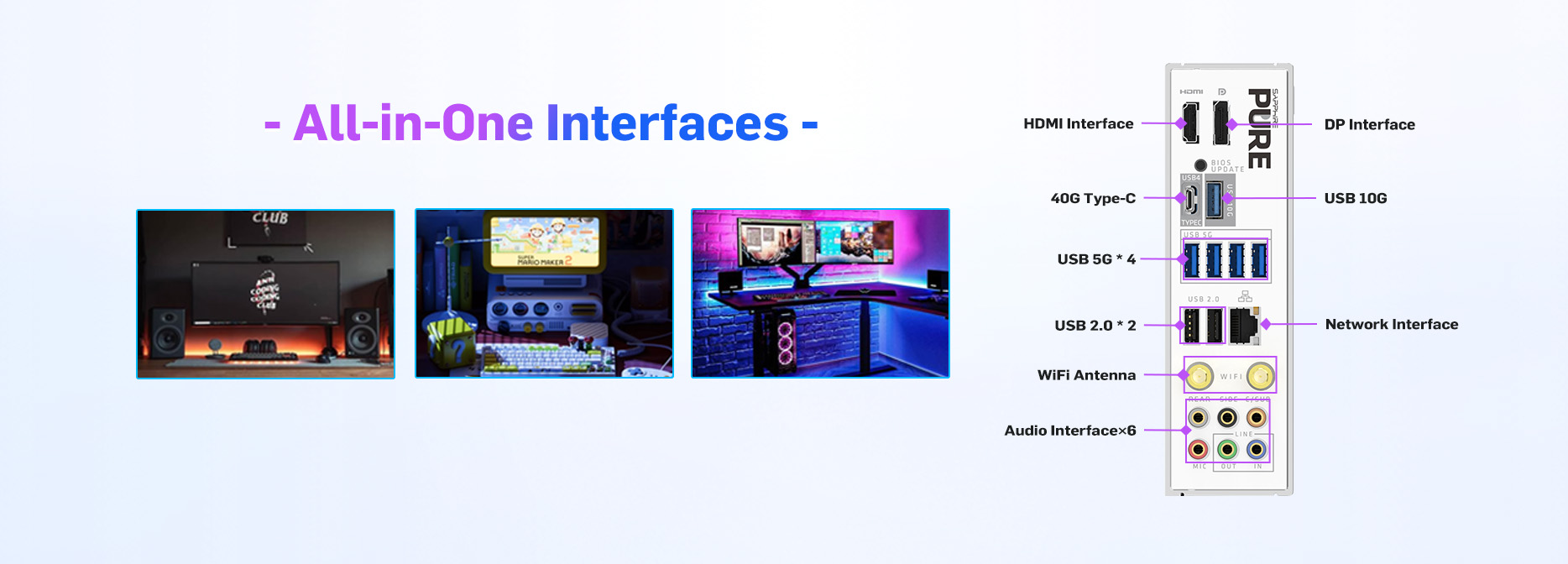

| Rear Ports | 1 × DisplayPort, 1 × HDMI ™, 1 × RJ45 LAN, 2 × Wi Fi Antenna One-click Flash BIOS Button, 2× USB 2.0, 4× USB 3.2 Gen1 Type-A 1× USB 3.2 Gen2 Type-A, 6× Audio Jacks 1x USB 4.0 40G (DisplayPort Alt mode & 15W PD) Type-C |
| Storage | 1x PCIe 5.0 M.2, 2x PCIe 4.0 M.2, 4x SATA |
| Dimensions | ATX, 305x245mm |
| Debug LED | DRAM: Yellow, CPU: Red, GPU: White, Boot: Green |
