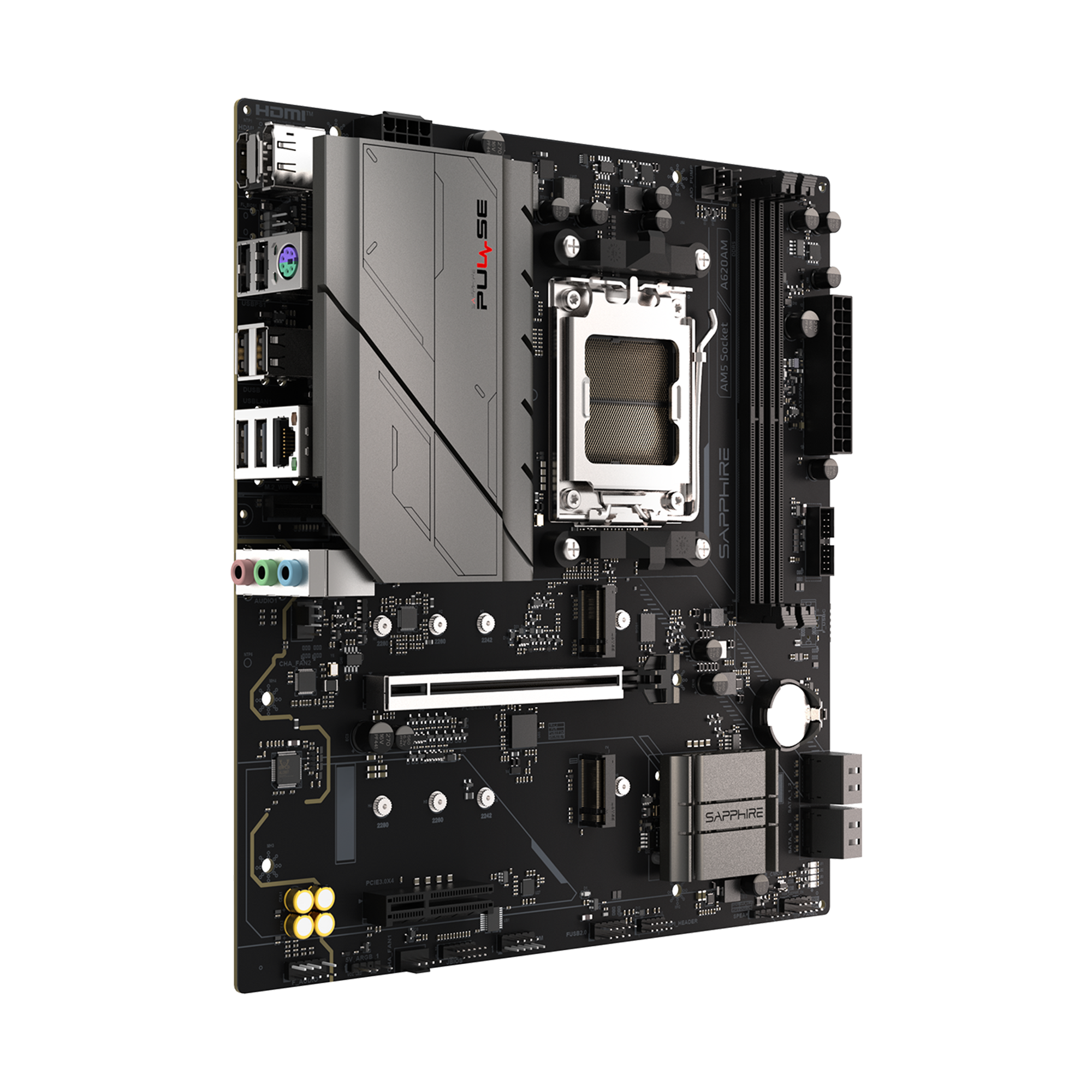

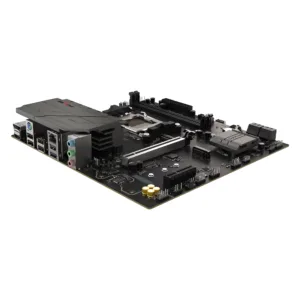

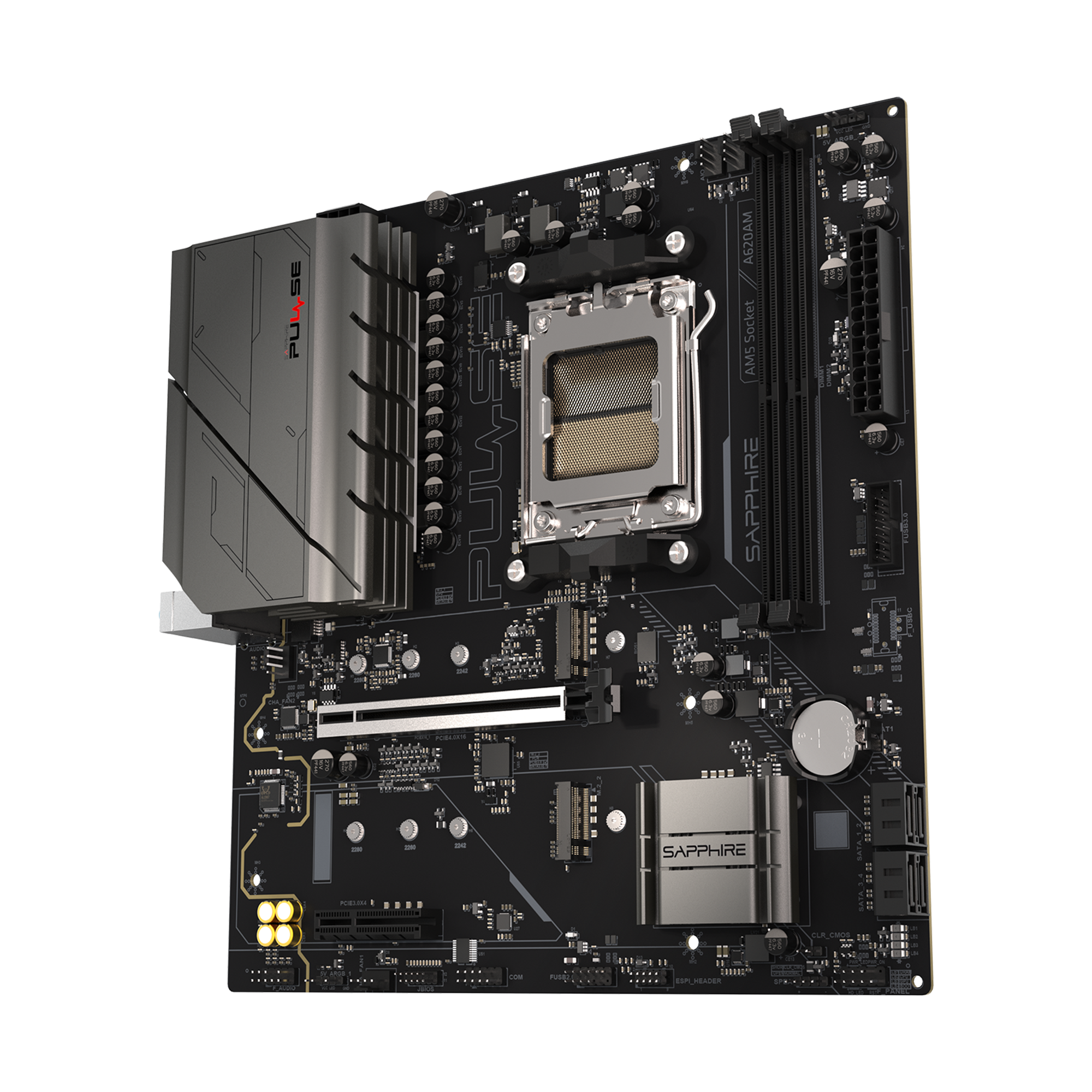

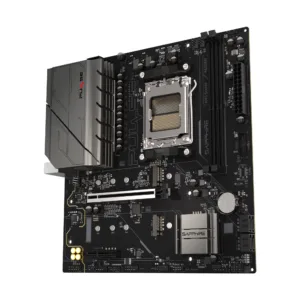

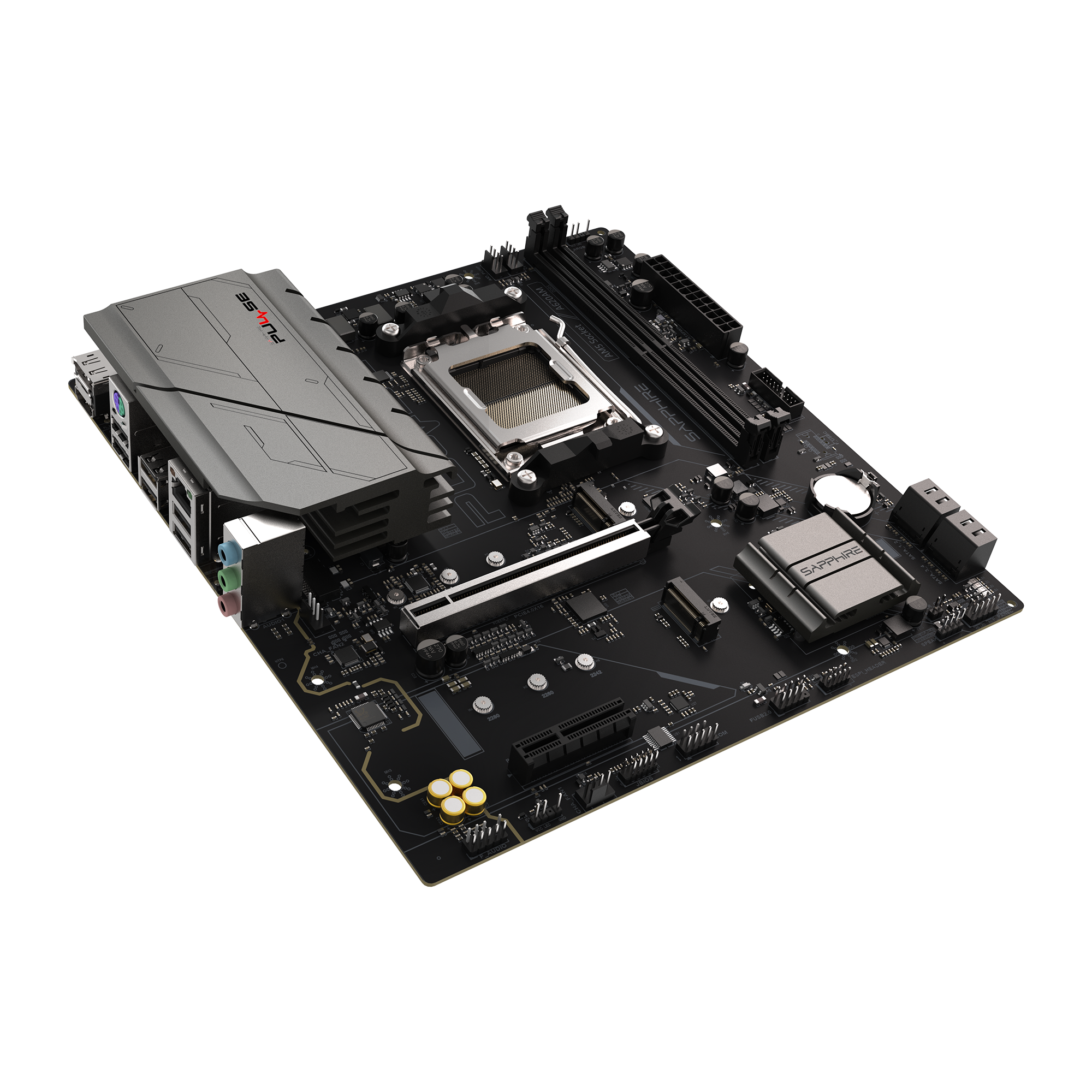

SAPPHIRE PULSE A620AM MOTHERBOARD
The PULSE A620AM is a high-performance AM5 motherboard designed to support the latest AMD Ryzen™ 9000, 8000, and 7000 series desktop processors. It features a robust 6+2+1 phase power design and advanced cooling solutions to deliver exceptional stability and speed for enthusiast-level builds.
Product Highlights:
- CPU Support: AMD AM5 CPU SUPPORT
- BIOS: SAPPHIRE CORE BIOS
- Power Design: 6+2+1 Phase CPU Power, 55A Per Phase

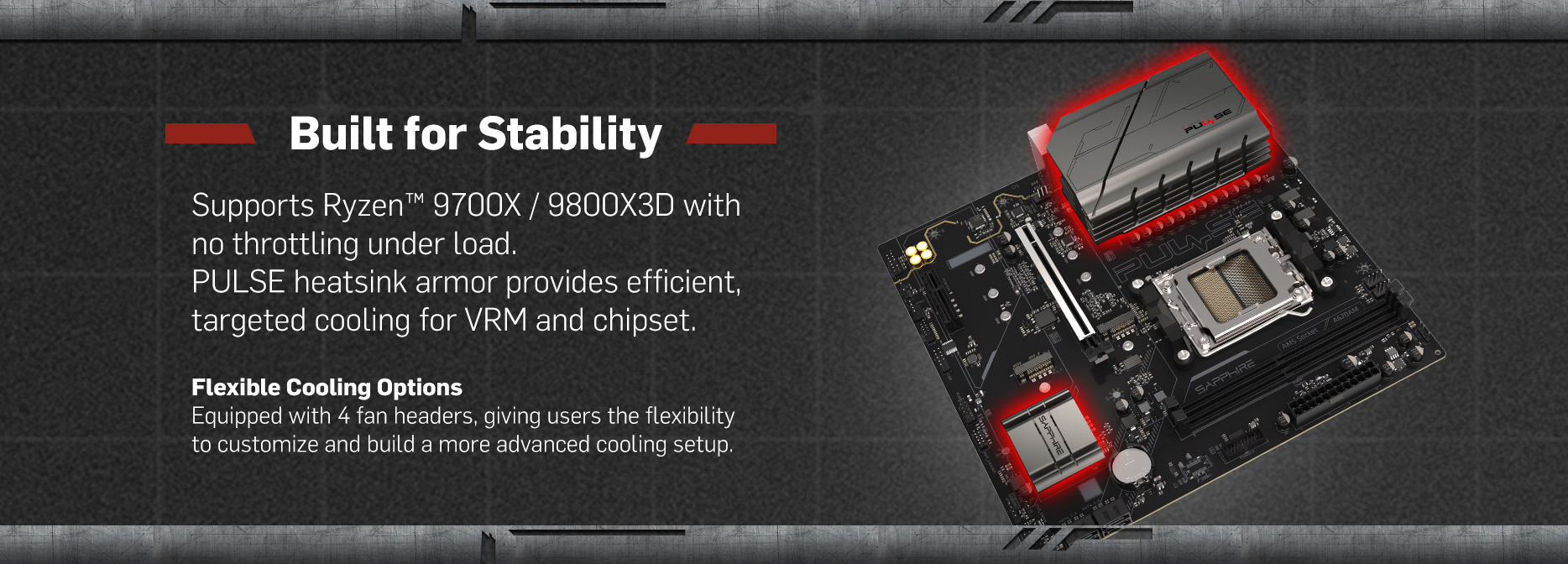

- Cooling: Robust VRM, M.2 and PCH Cooling
- Memory: Dual Channel, 7600 MHz Memory OC

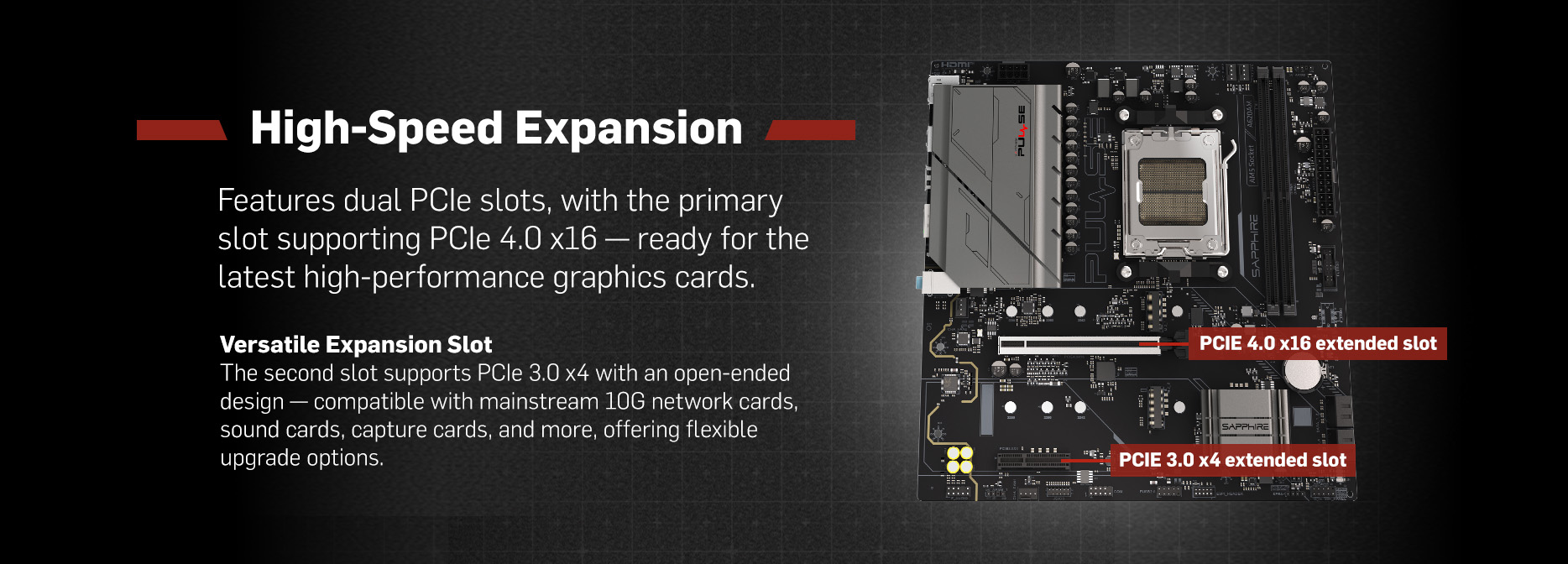

- Expansion: PCI Express 4.0 x16
- Storage: PCIe 4.0 M.2 Support
| Chipset | AMD® A620A |
| CPU Support | Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Memory Support | 2x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 64GB(2x 32GB), up to 7600 MHz(OC) |
| PCI-E Expansion Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x4 |
| Display Connector | DisplayPort x1, HDMI x1 |
| Audio | Realtek® ALC897 HD Audio, 5.1 Channel |
| Network | Realtek® RTL8111K Gigabit Ethernet |
| Front USB Headers | 1x USB 3.2 Gen1 (2 x Type-A), 1x USB 2.0 (2 x Type-A) |

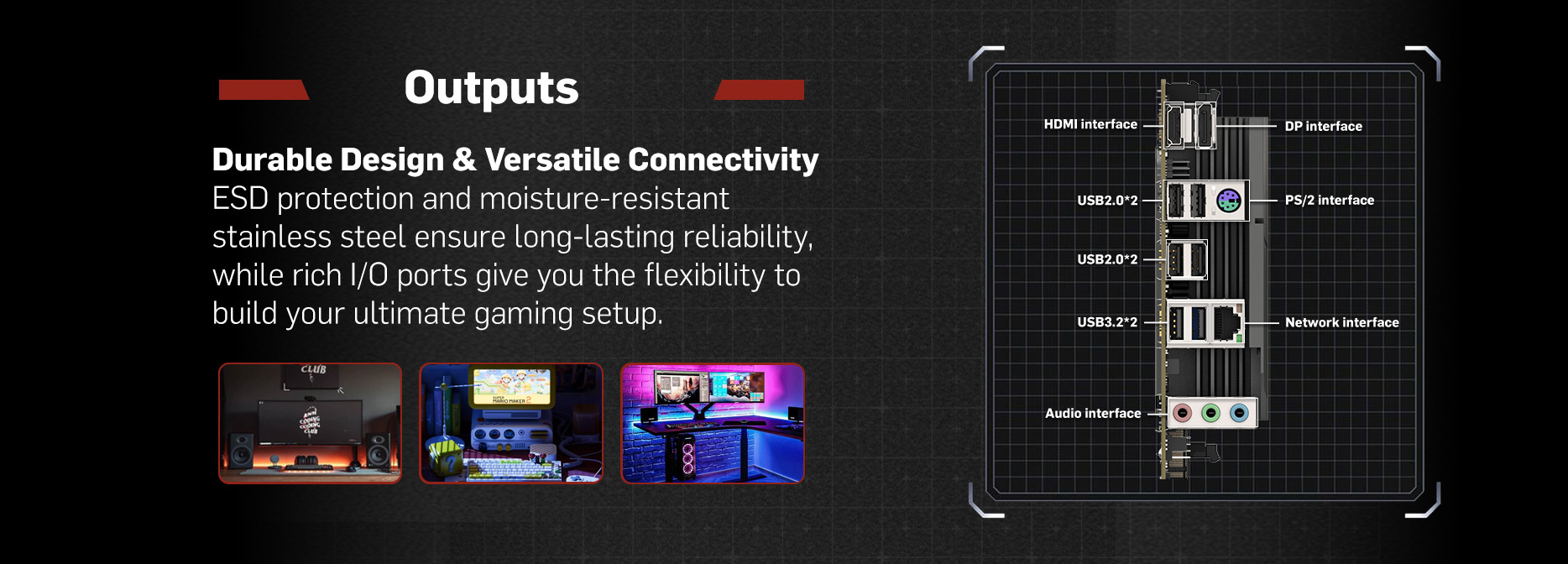

| Rear Ports | 1× HDMI ™, 1× DisplayPort, 1× PS/2 4× USB 2.0, 2× USB 3.2 Gen 1 Type-A 1× LAN (RJ45) 3× Audio Jacks |
| Storage | 1x PCIe 4.0 M.2, 1x PCIe 3.0 M.2, 4x SATA |
| Dimensions | Micro-ATX, 244x235mm |
| Debug LED | DRAM: Yellow, CPU: Red, GPU: White, Boot: Green |
