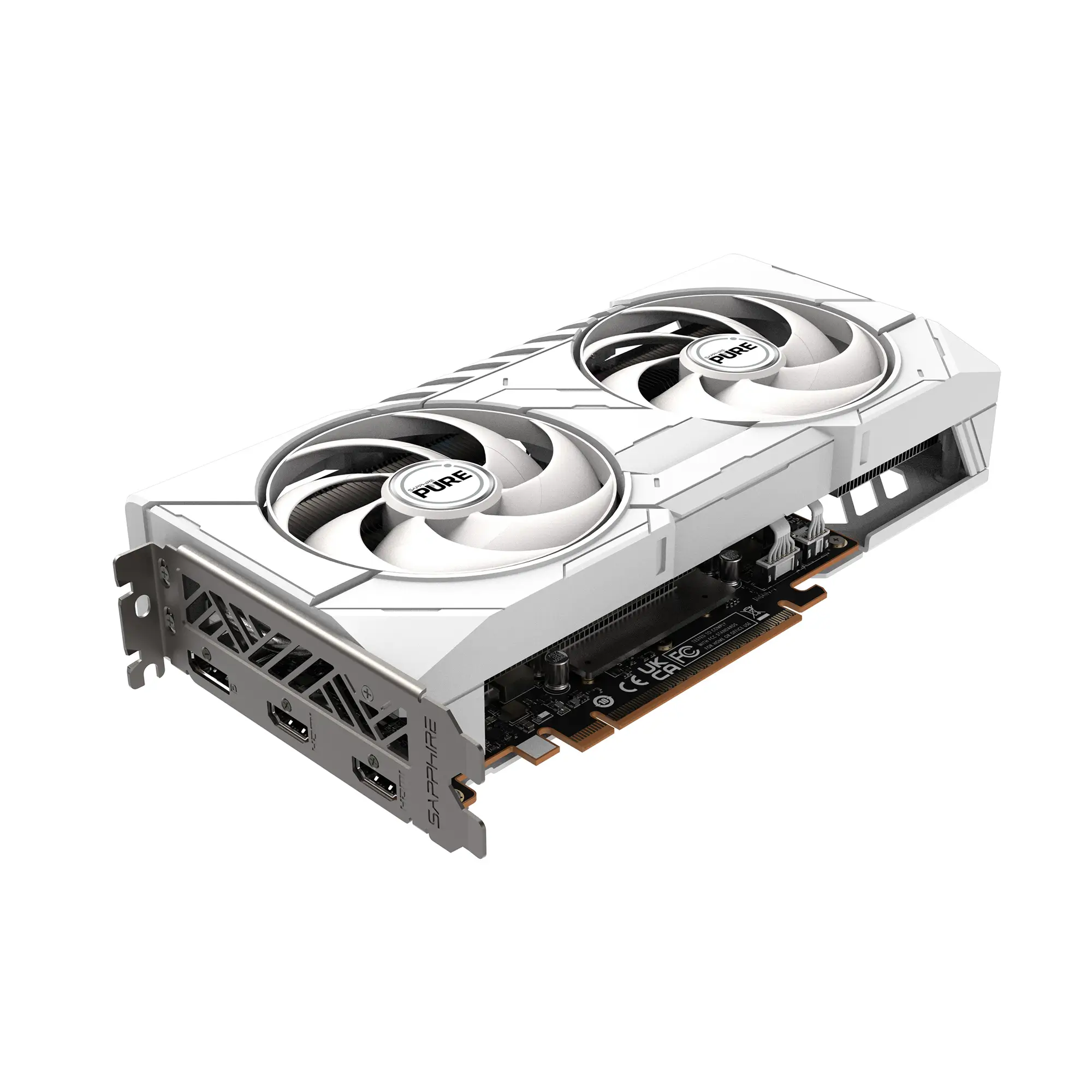

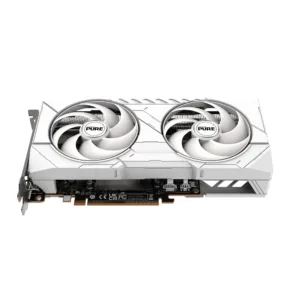

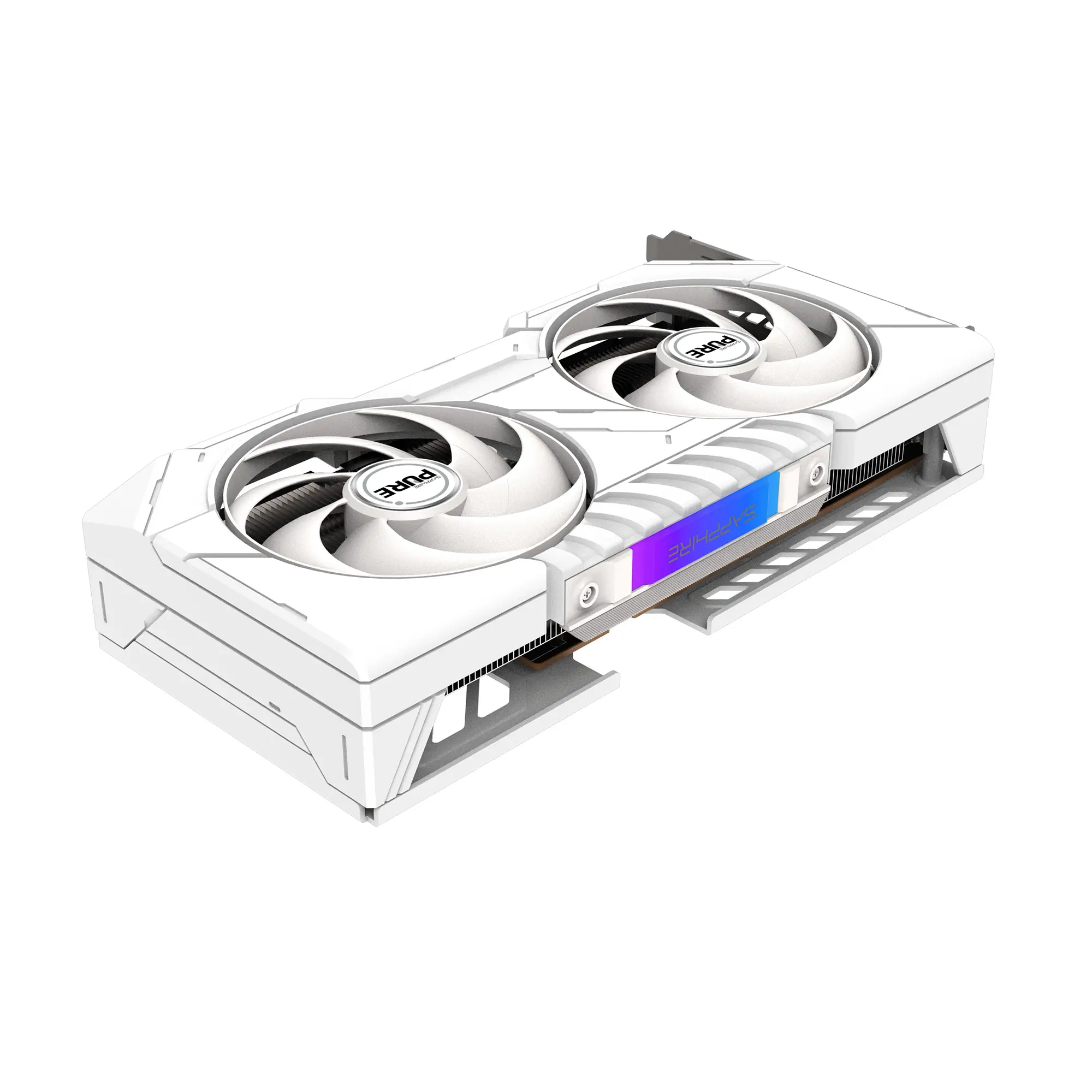

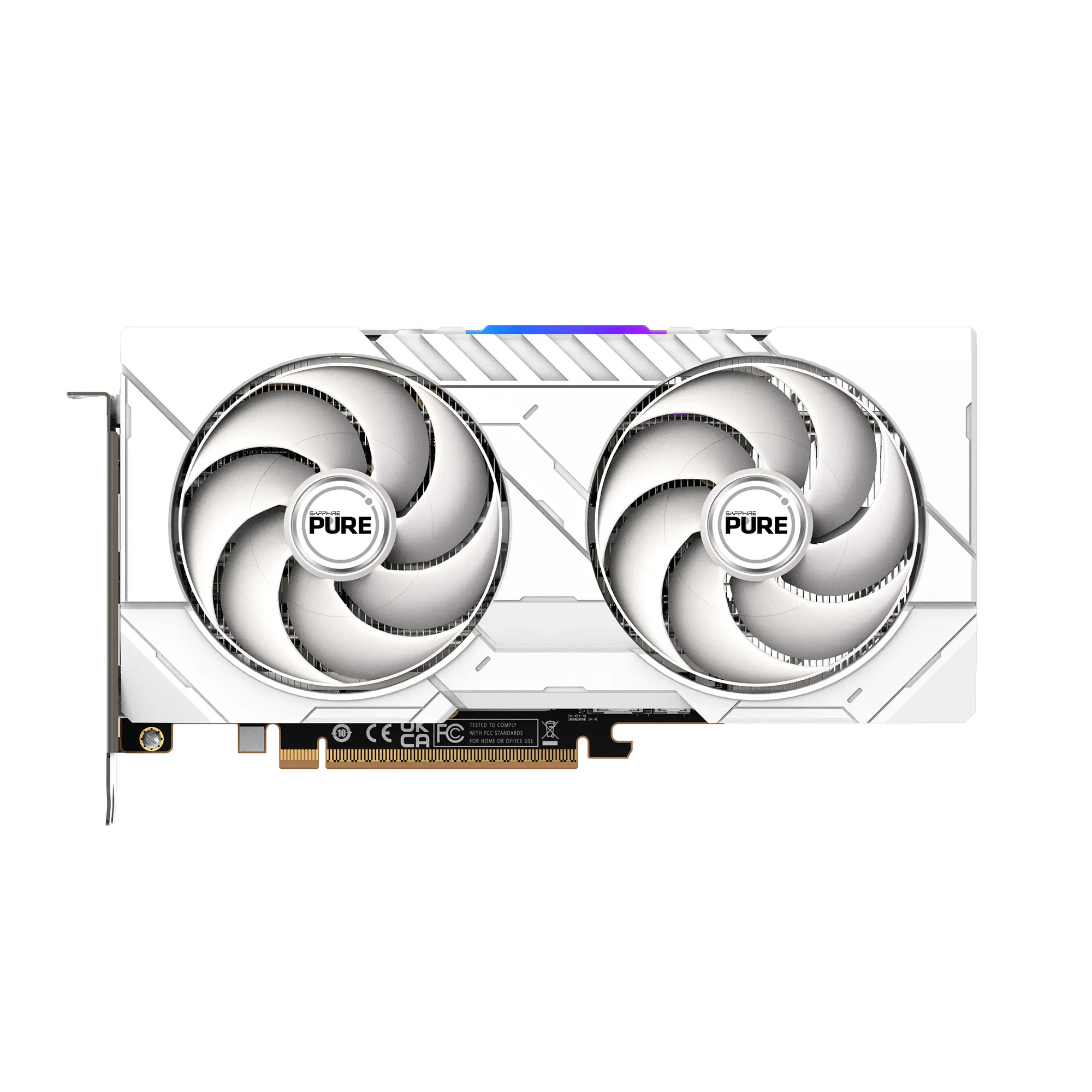

SAPPHIRE PURE AMD Radeon™ RX 9060 XT OC 16GB Graphics Card
The PURE AMD Radeon™ RX 9060 XT OC GPU offers elite gaming performance with its high-speed clock rates and the cutting-edge AMD RDNA™ 4 architecture. Designed for 1440p excellence, this graphics card features 16GB of high-performance memory and advanced cooling solutions for sustained gameplay.
Product Highlights:
- GPU: Boost Clock: Up to 3290 MHz
- GPU: Game Clock: Up to 2700 MHz
- Memory: 16GB/128 bit DDR6. 20 Gbps Effective
- Stream Processors: 2048
- Architecture: AMD RDNA™ 4 Architecture
- Ray Accelerator: 32
| GPU | AMD Radeon™ RX 9060 XT Graphics Card AMD RDNA™ 4 Architecture |
| Engine Clock | Boost Clock: Up to 3290 MHz Game Clock: Up to 2700 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. |
| Stream Processors | 2048 |
| Compute Units | 32 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 32MB |
| Ray Accelerators | 32 |
| AI Accelerator | 64 |
| Memory Size/Bus | 16GB/128 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 3 Displays |
| Resolution | HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Output | 2x HDMI® 1x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 1440P |

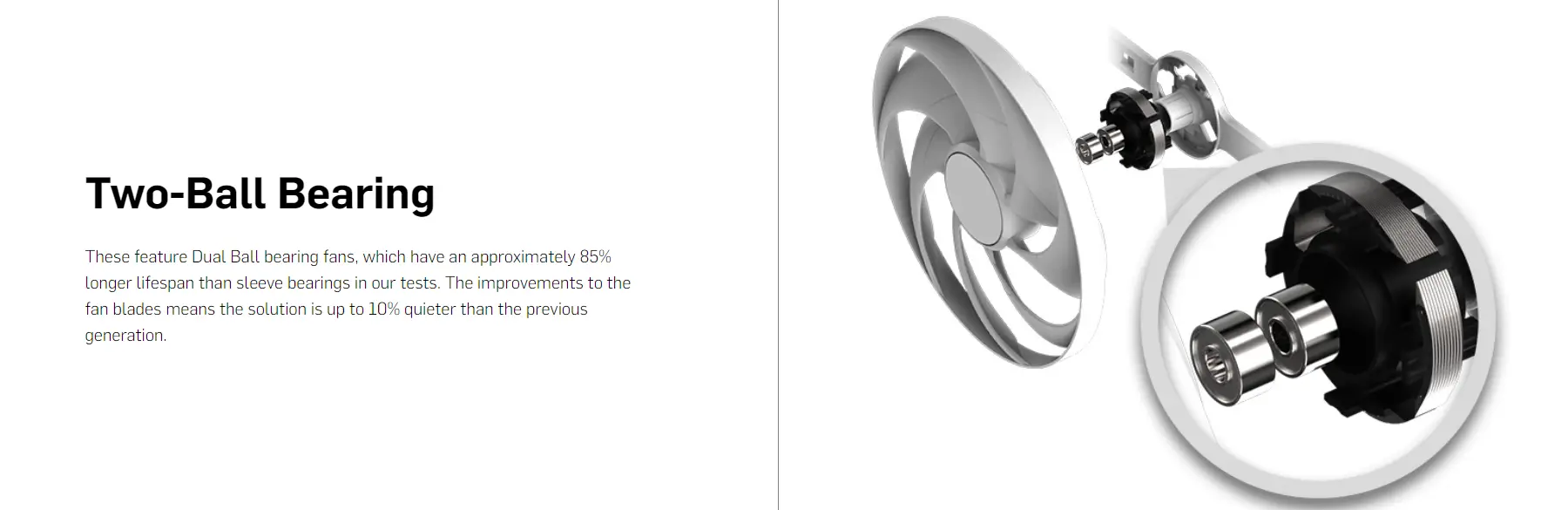

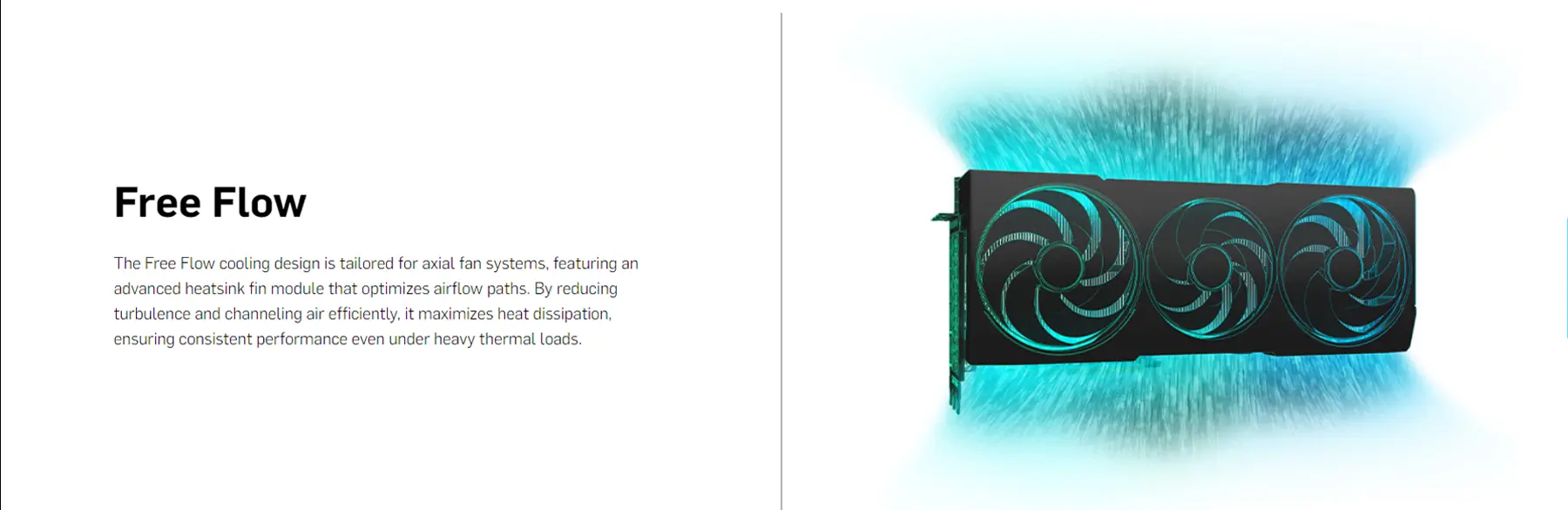

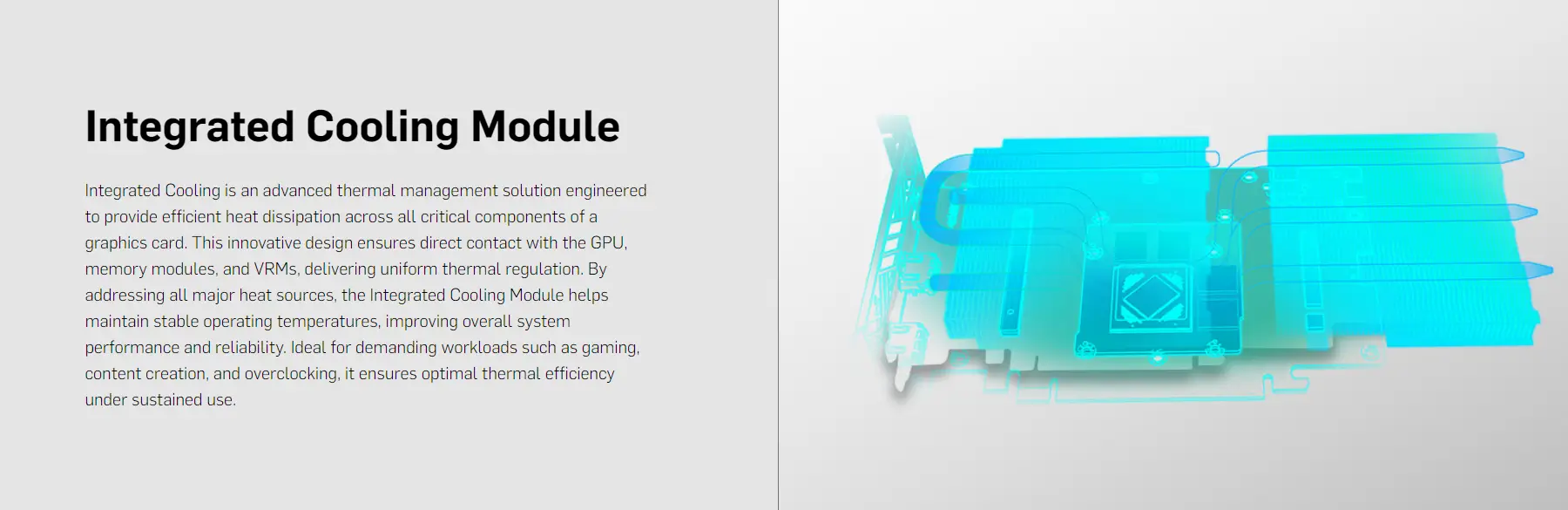

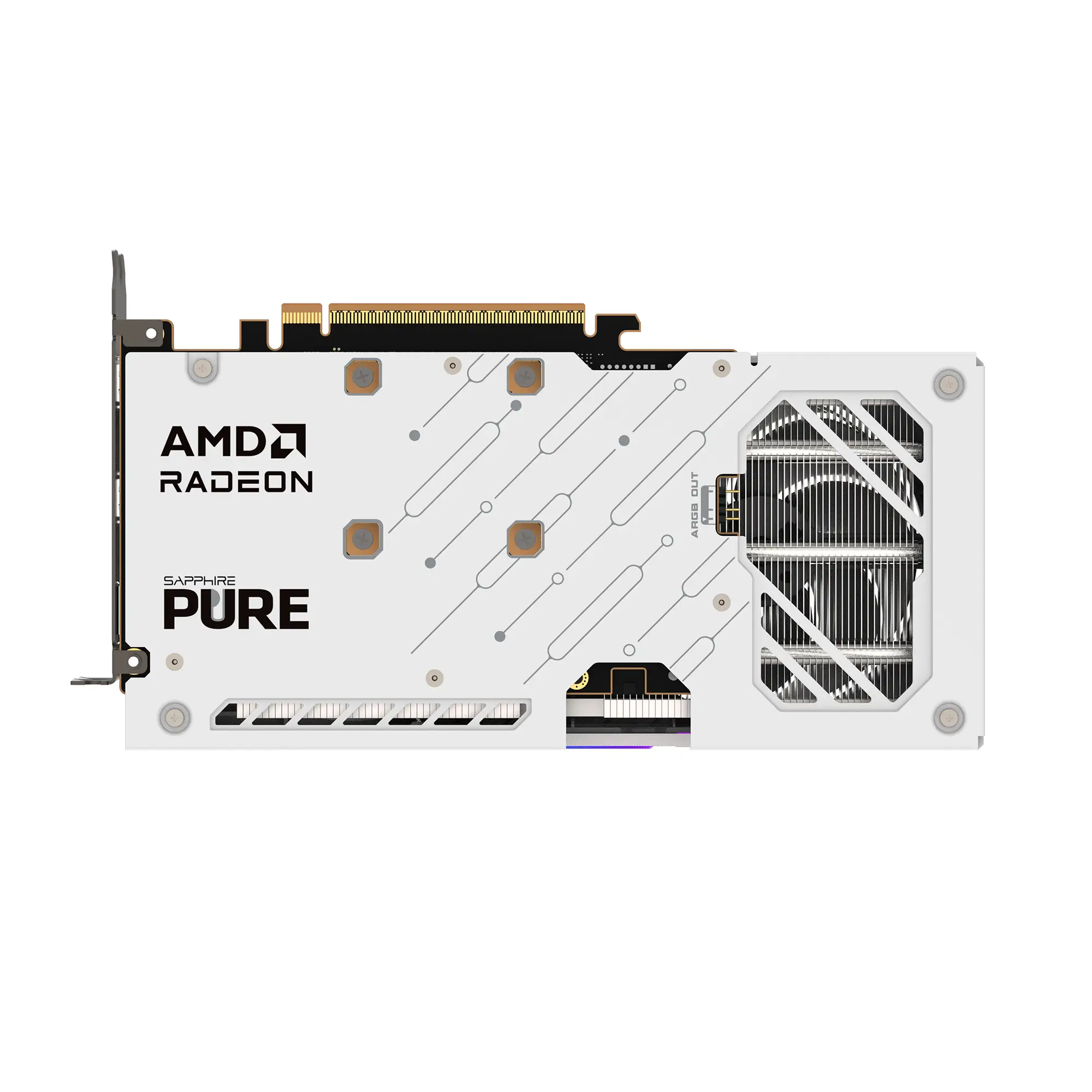

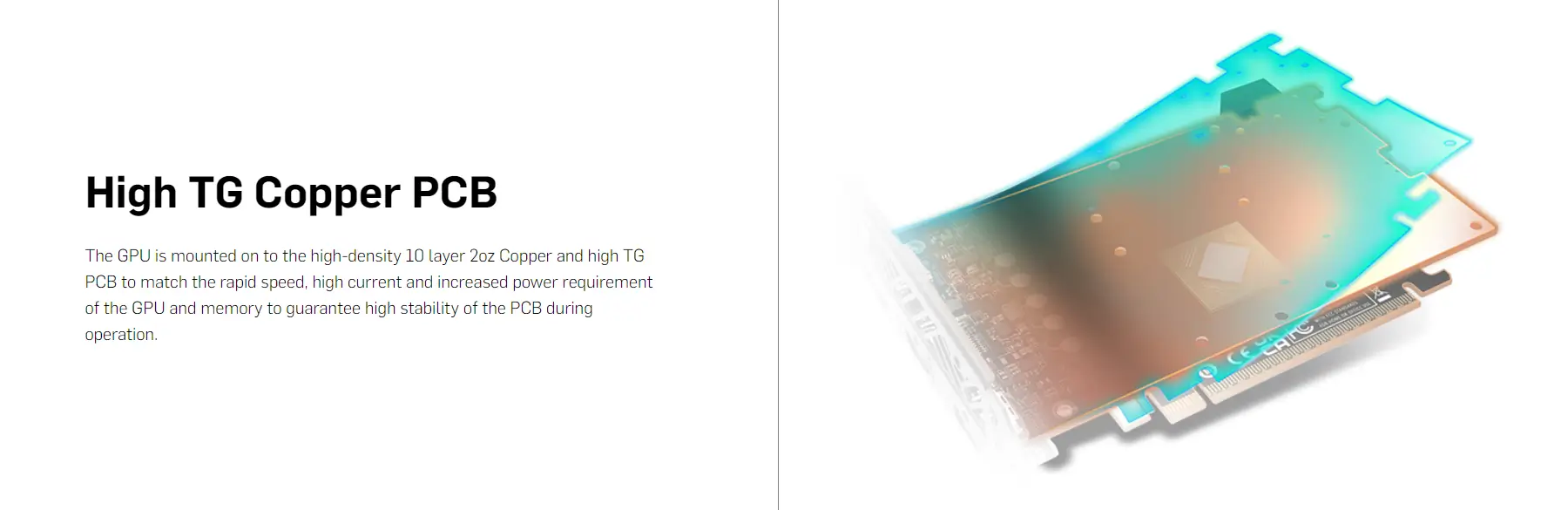

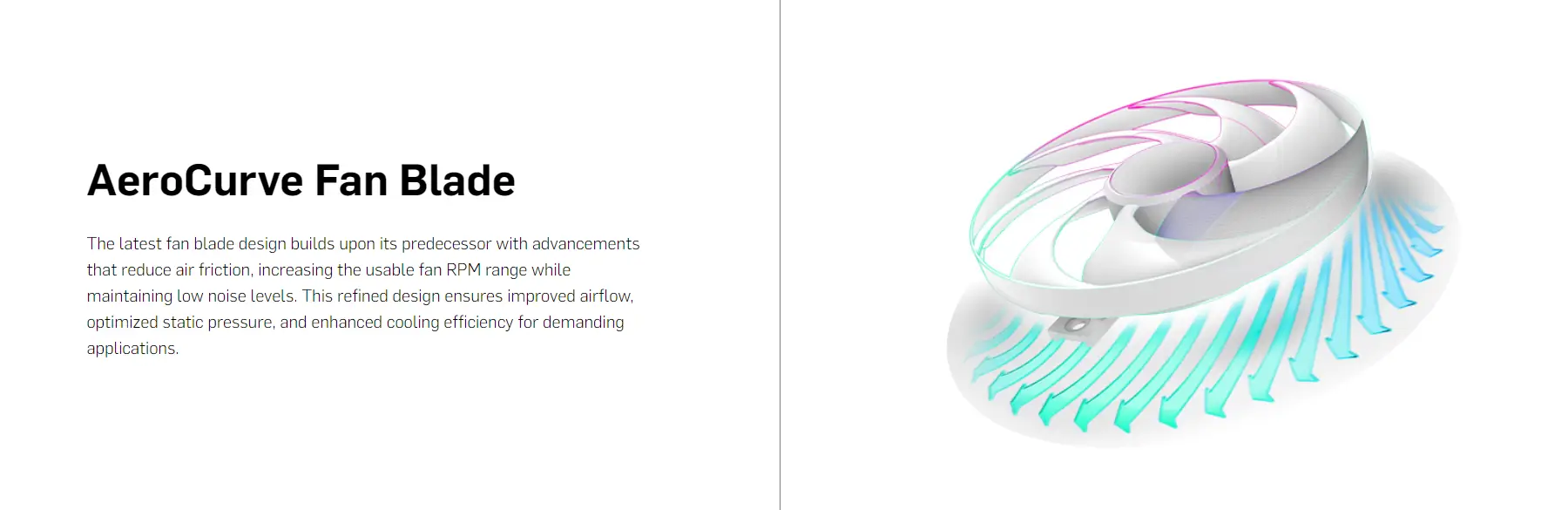

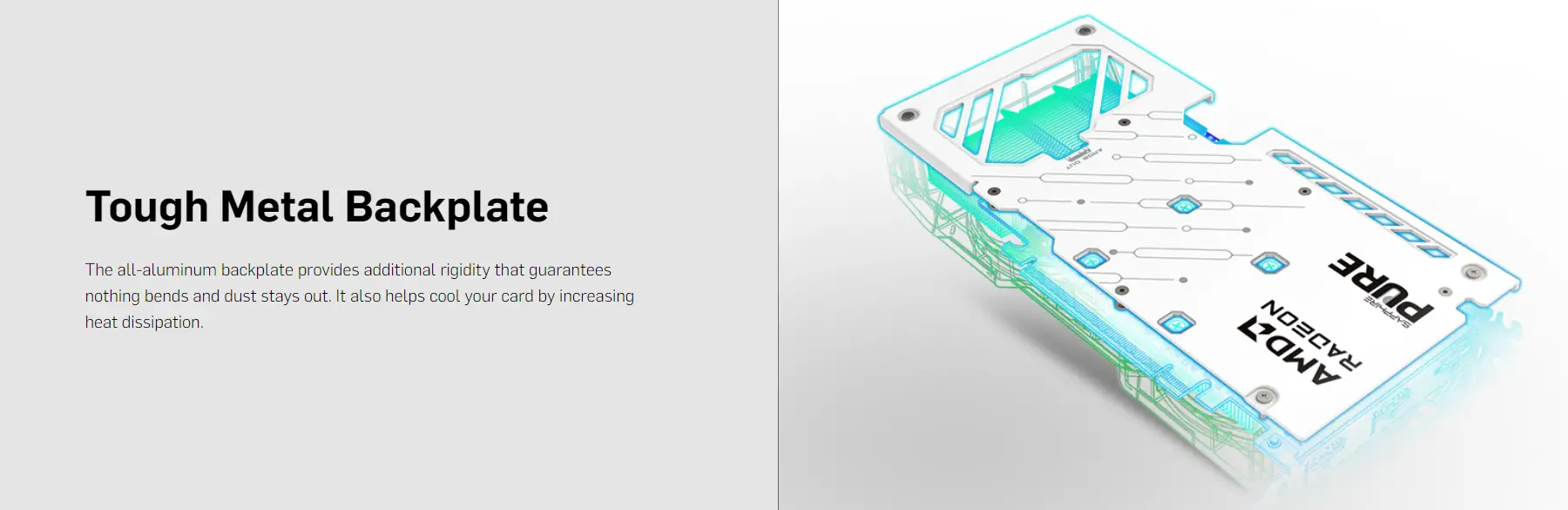

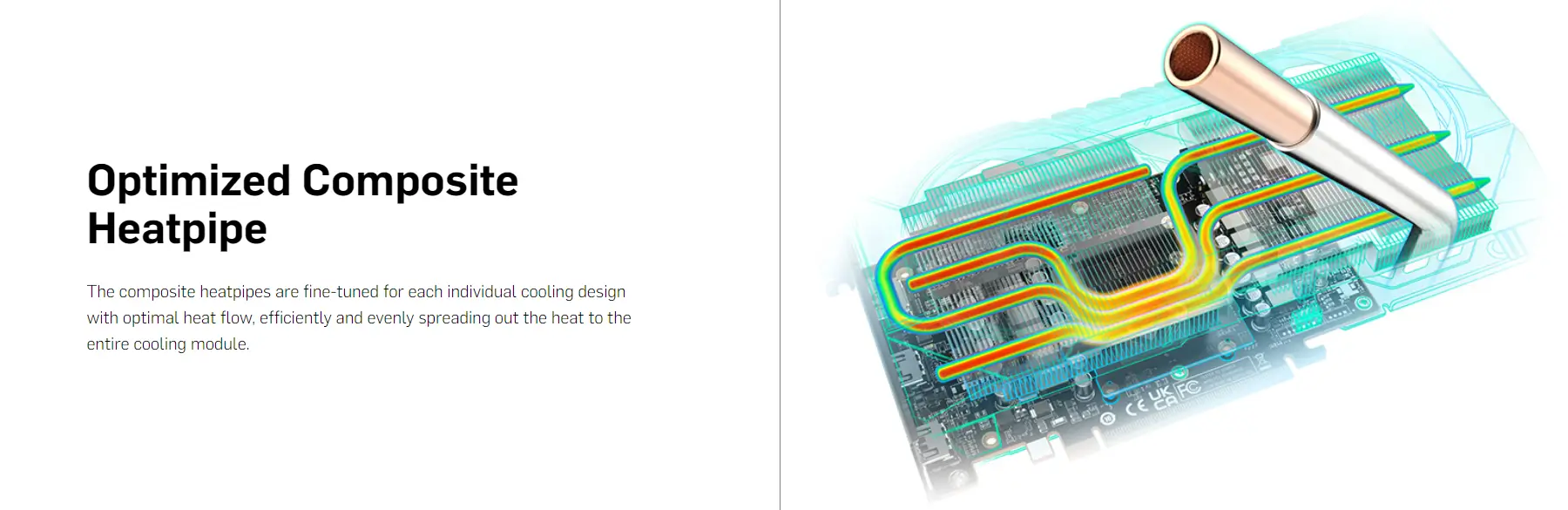

| Sapphire Features | Honeywell PTM7950 Thermal Interface Material (TIM) AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Dual-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate ARGB SAPPHIRE Logo Two-Ball Bearing Fans 9-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported Performance vs. Efficiency Quicksets Glow! TriXX Boost |
| Accessories Bundled | 3pin 5V ARGB Cable |

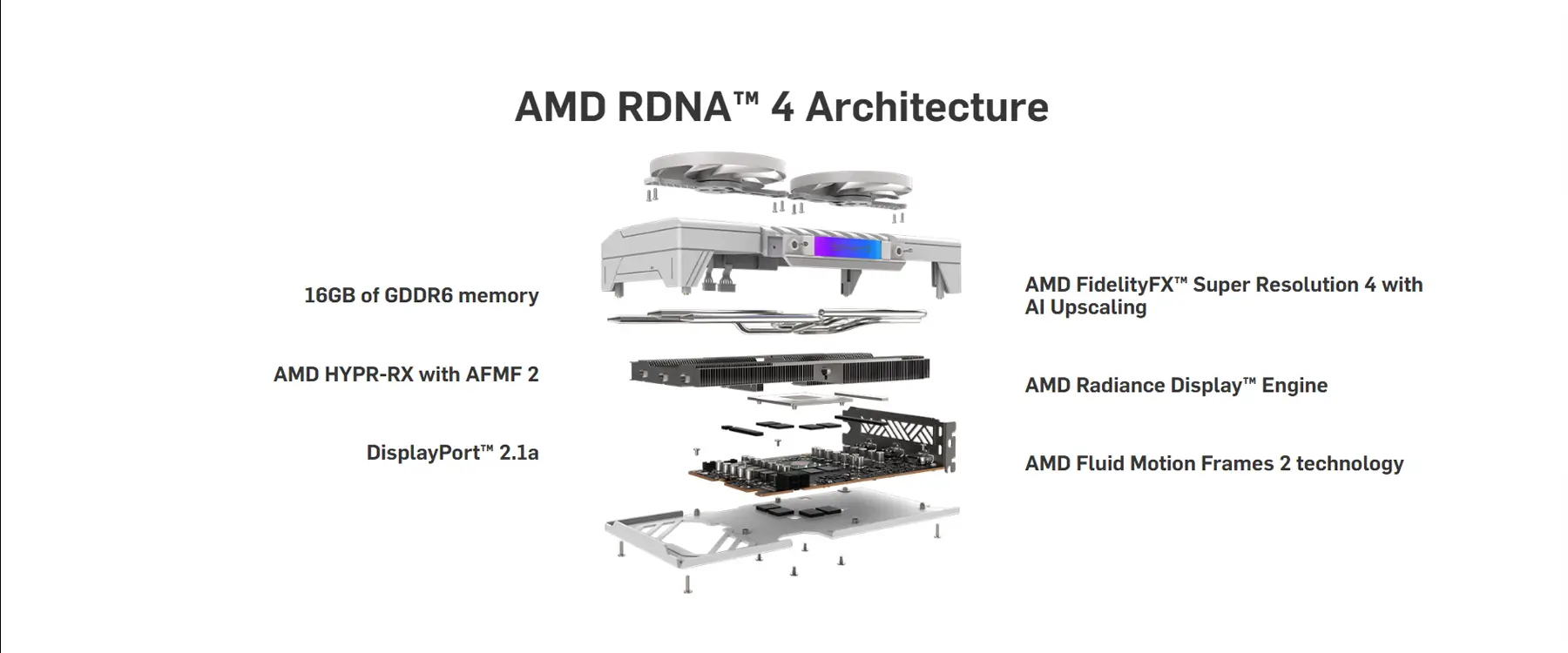

| AMD Features | AMD RDNA™ 4 Architecture 32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX™ Super Resolution 4 with AI Upscaling DisplayPort™ 2.1a AMD Radiance Display™ Engine AMD Fluid Motion Frames 2 technology AMD Radeon™ Anti-Lag 2 technology AMD FidelityFX™ technologies Microsoft® DirectX® 12 Ultimate AMD Noise Suppression AMD Freesync™ technology AMD Infinity Cache 16 GB of GDDR6 on 128-bit Memory Bus AMD smart technologies AMD Software: Adrenalin Edition™ application |
| Cooler Type | Dual-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Two-Ball Bearing |
| Form Factor | 2.3 slot, ATX Dimension: 240(L)X 124(W)X 46.1 (H)mm |
| Power Consumption | 170W Typical Board Power |
| OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement | Minimum 450 Watt Power Supply 1 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
- Specifications provided here are for guidance only. Please check with your regional distributor or dealer for latest specifications.
- Colors of PCB or other components may differ from those illustrated.
- SAPPHIRE reserves the right to update or revise specifications without prior notice.
- All trademarks and logos are acknowledged as the property of their respective holders.
*The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
