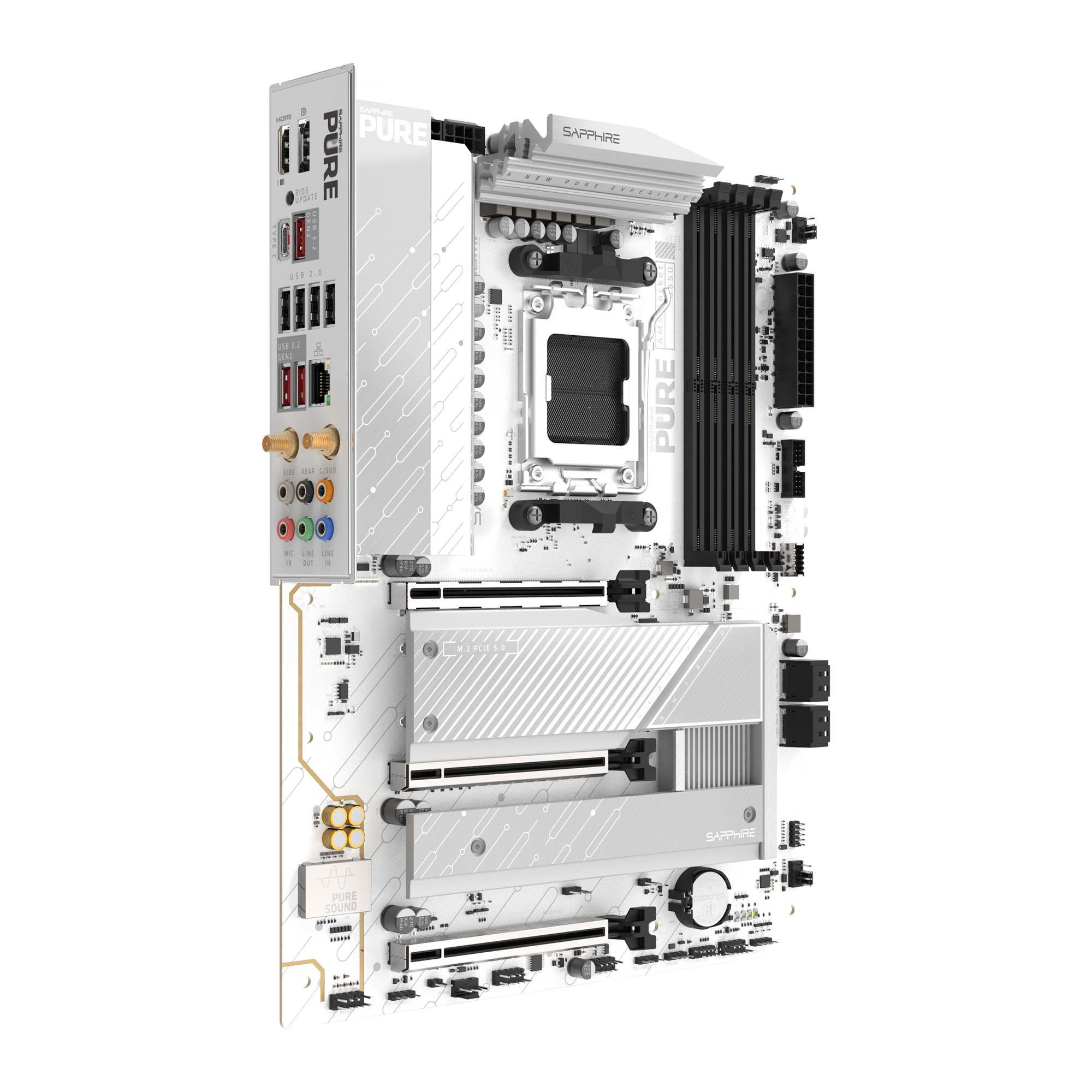

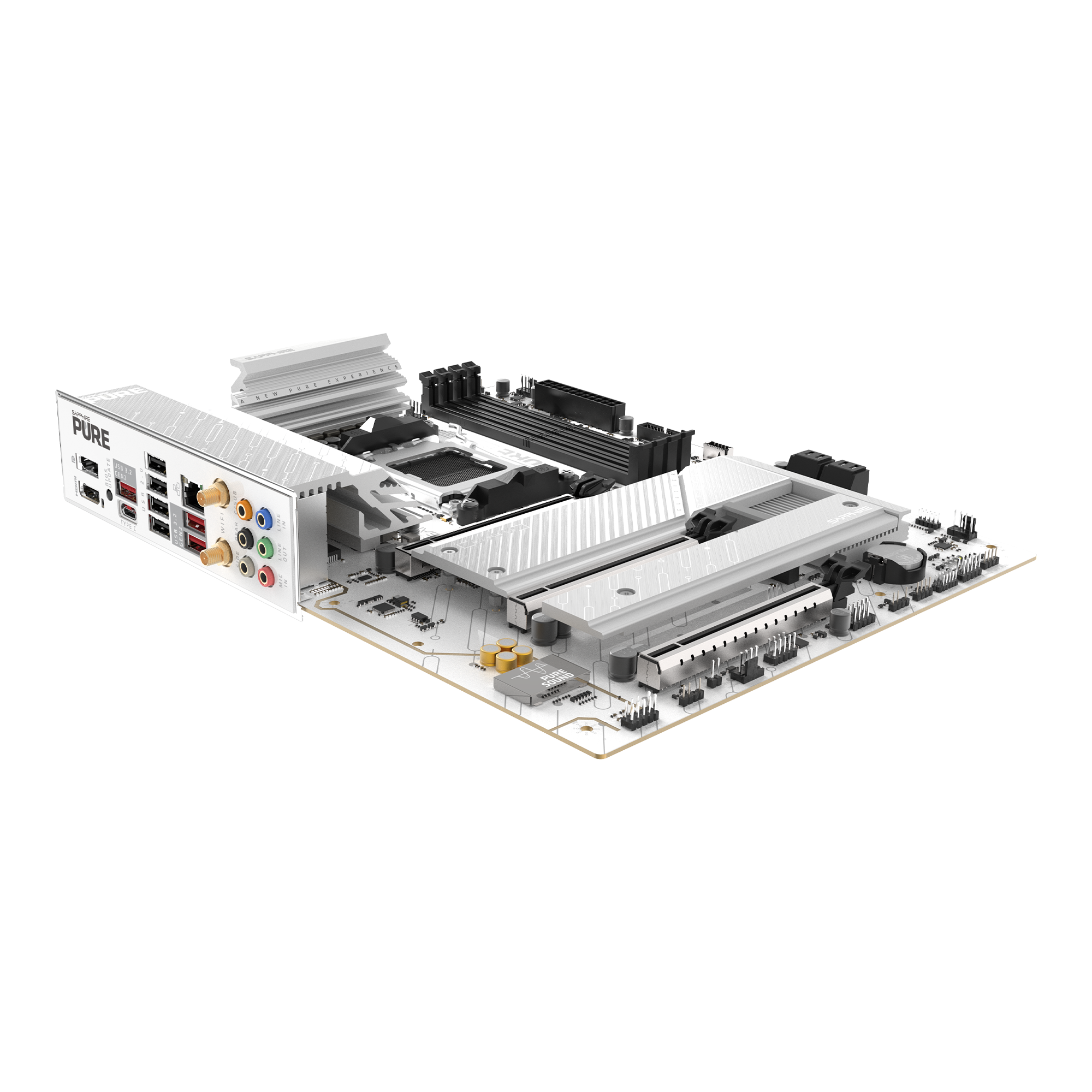

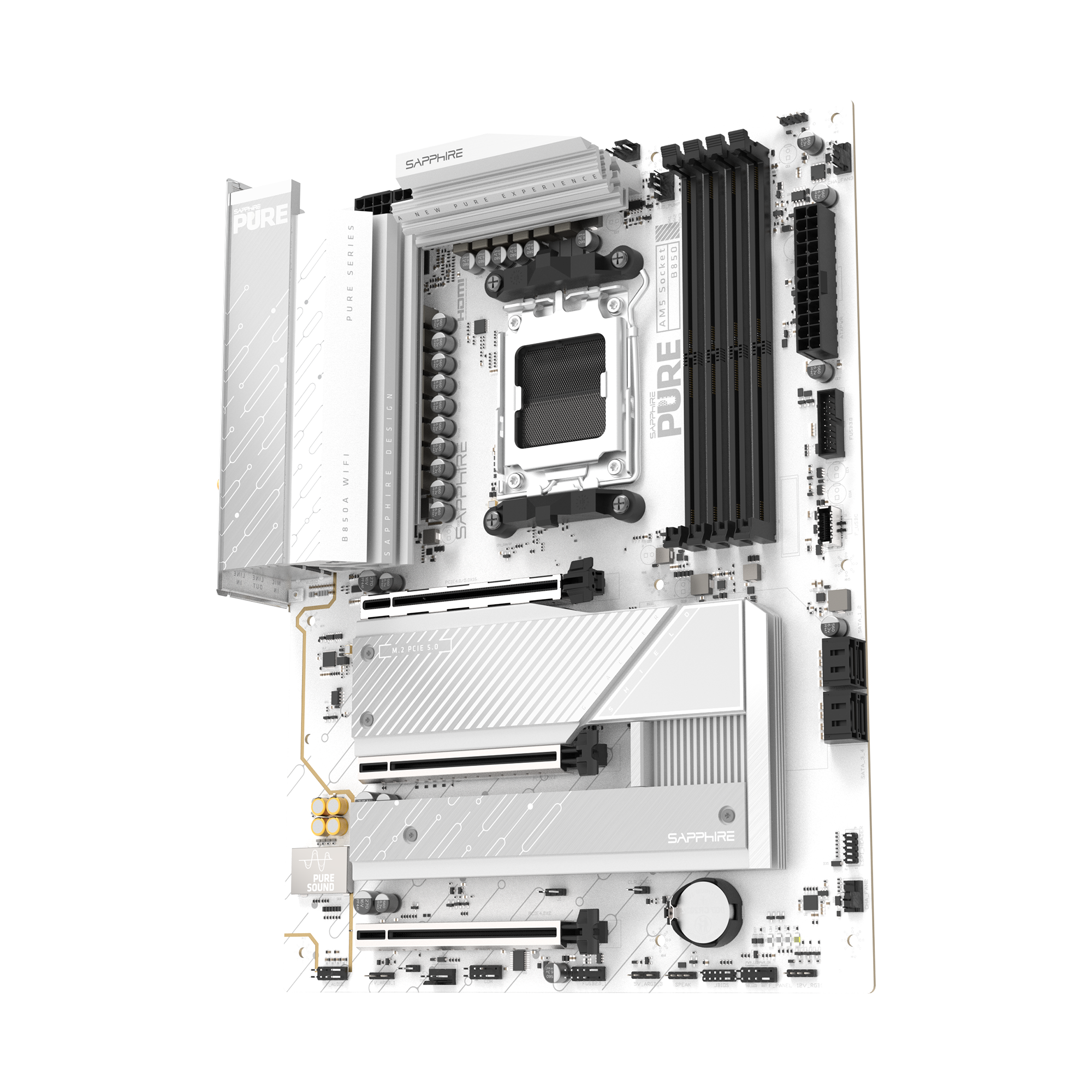

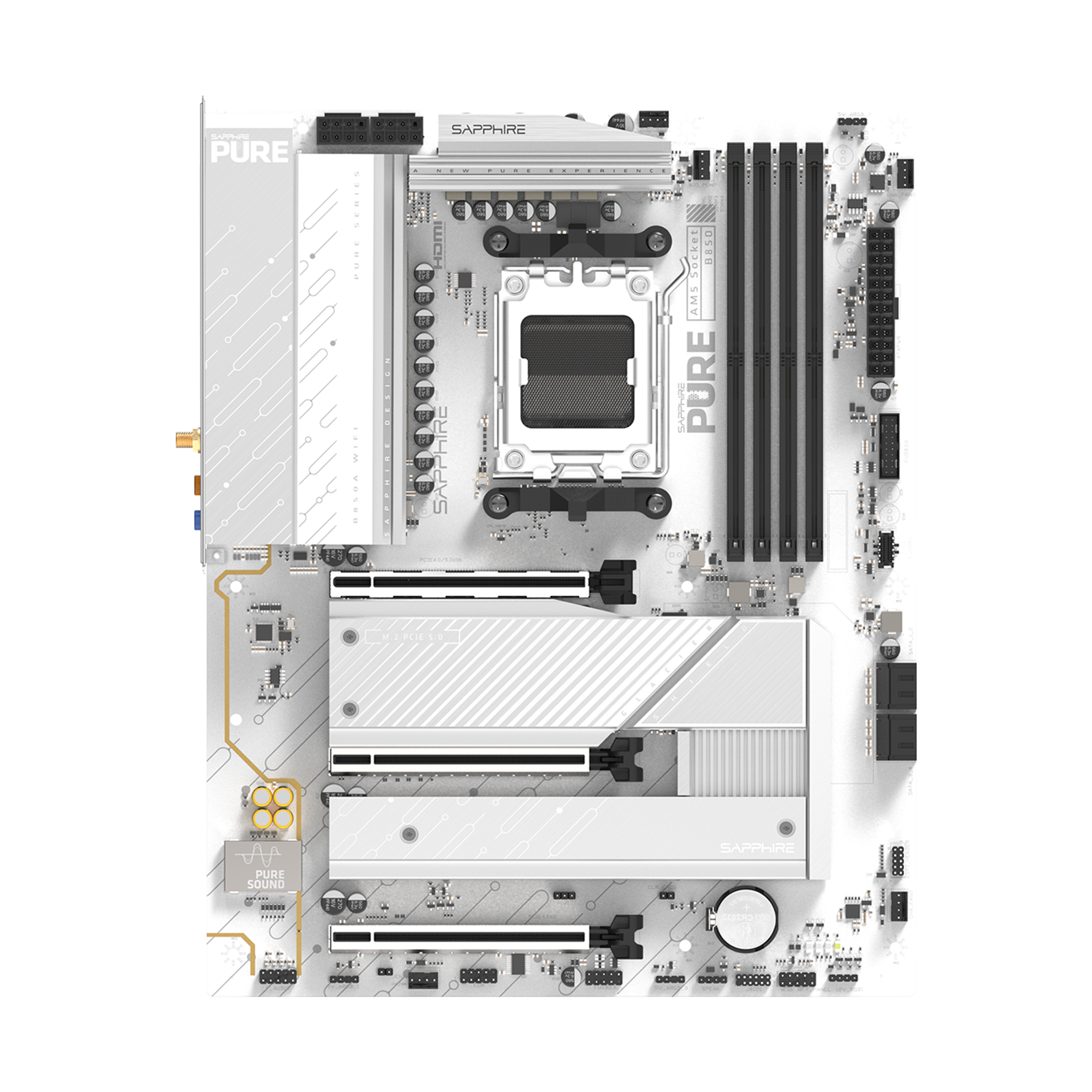

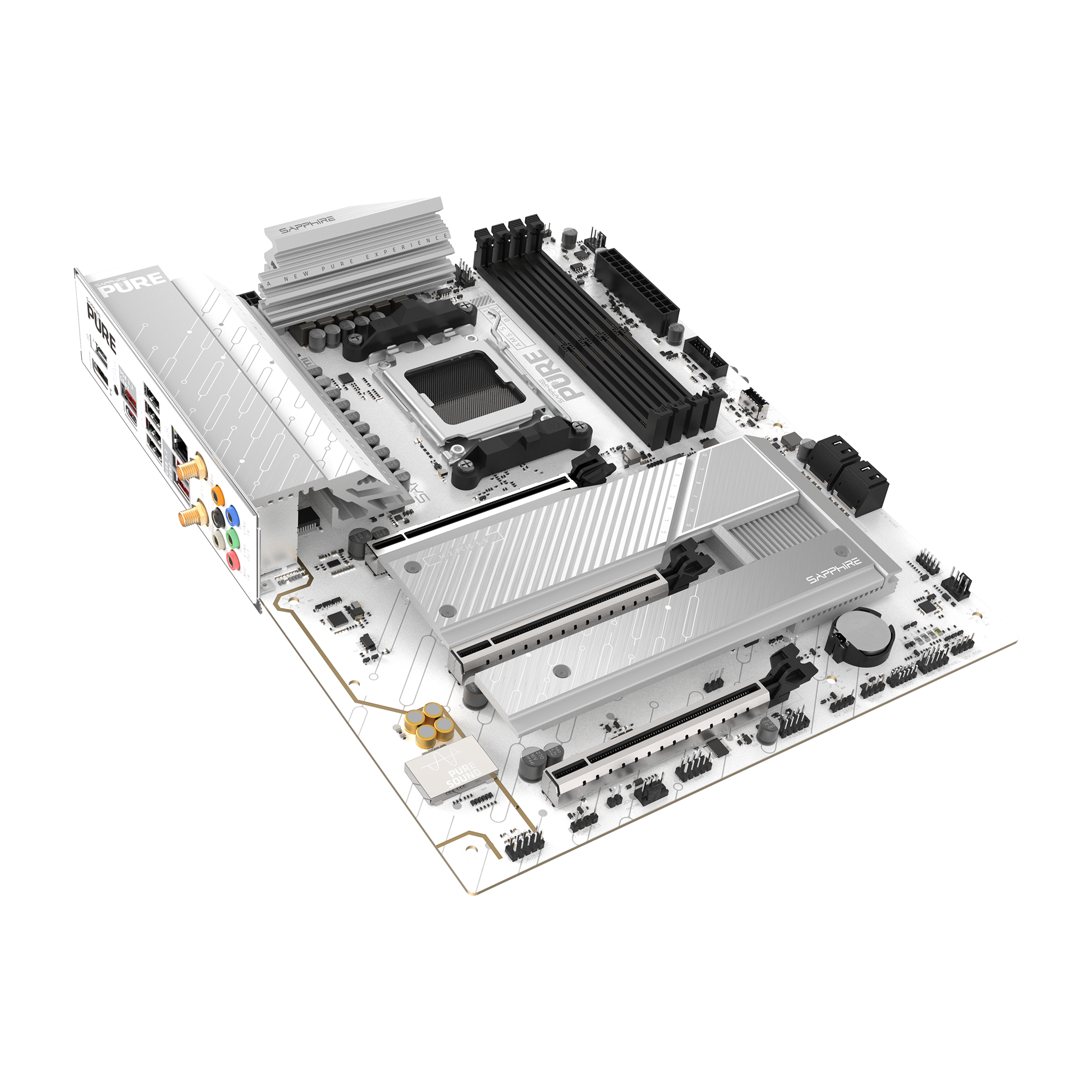

SAPPHIRE PURE B850A WIFI 7 MOTHERBOARD
The SAPPHIRE PURE B850A WIFI 7 motherboard provides a high-performance platform for AMD AM5 processors with its advanced 12+2+1 phase power design. It features PCIe 5.0 technology and WiFi 7 support to meet the demands of modern gamers and power users.
Product Highlights:
- CPU Support: AMD AM5 CPU SUPPORT
- BIOS: SAPPHIRE CORE BIOS
- Power Delivery: 12+2+1 Phase CPU Power, 55A Per Phase

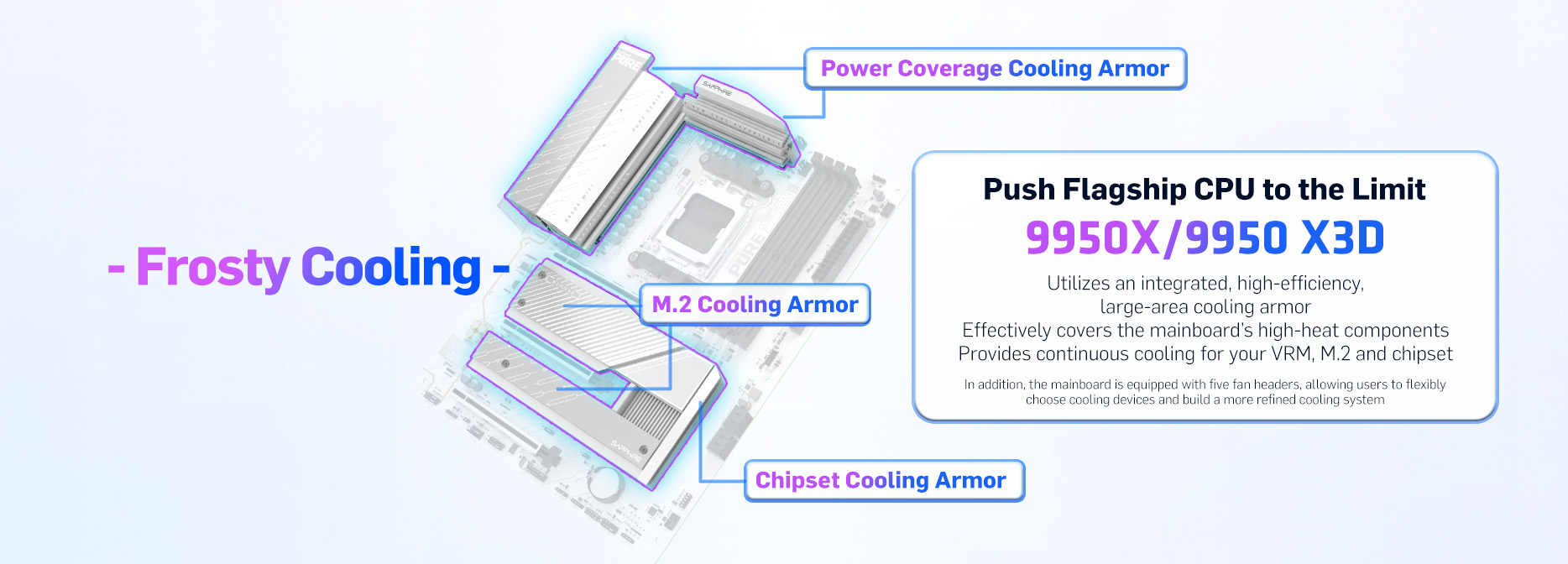

- Cooling: Robust VRM, M.2 and PCH Cooling
- Memory: Dual Channel, 8000 MHz Memory OC
- Wireless: WIFI 7 Support
- PCIe Slot: PCI Express 5.0 x16
- M.2 Support: PCIe 5.0 M.2 Support
- Diagnostics: Debug LED
| Chipset | AMD® B850 |
| CPU Support | Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Memory Support | 4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8000 MHz(OC) |

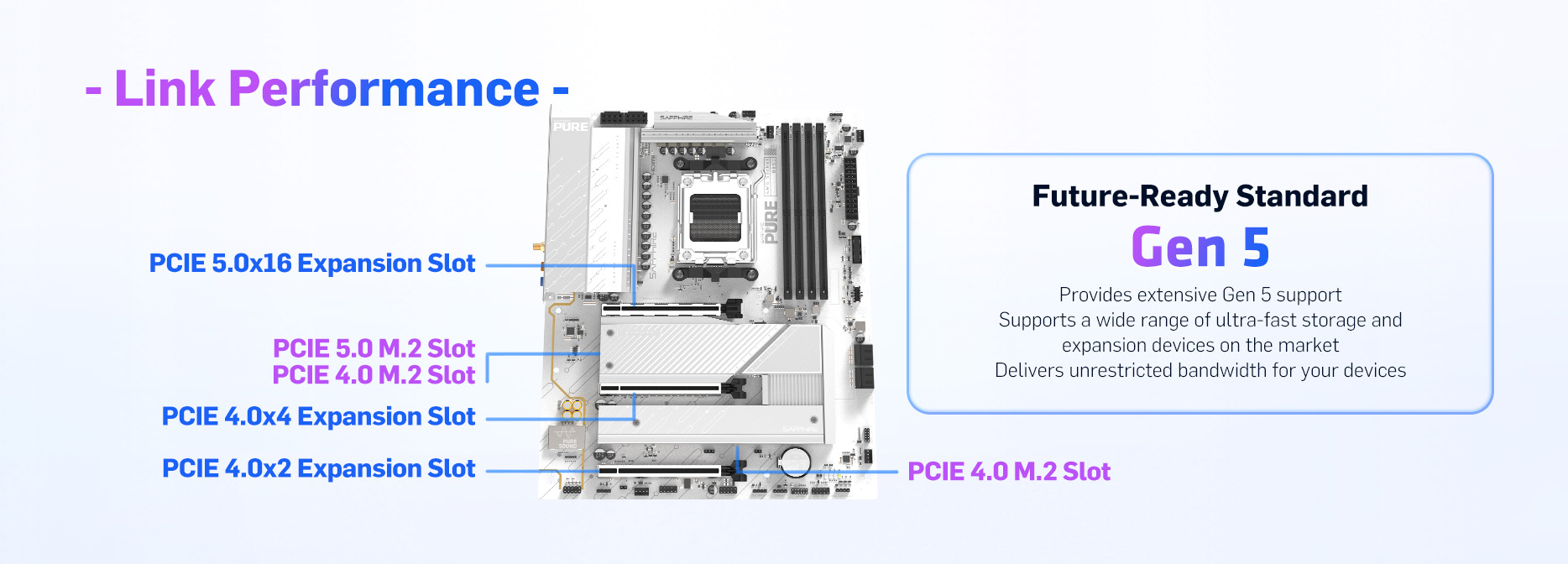

| PCI-E Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4 in 16x slot, 1x PCIe 4.0 x2 in 16x slot |
| Display Connector | DisplayPort x1, HDMI x1 |
| Audio | Realtek® ALC897 HD Audio, 7.1 Channel |
| Network | Realtek® RTL8125BG 2.5 Gigabit Ethernet M.2 WiFi 7 Module, Support 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5GHz / 6GHz band, Bluetooth 5.4 Support |
| Front USB Headers | 1x USB 3.2 Gen1 (1 x Type C), 1x USB 3.2 Gen1 (2 x Type A), 1x USB 2.0 (2 x Type A) |

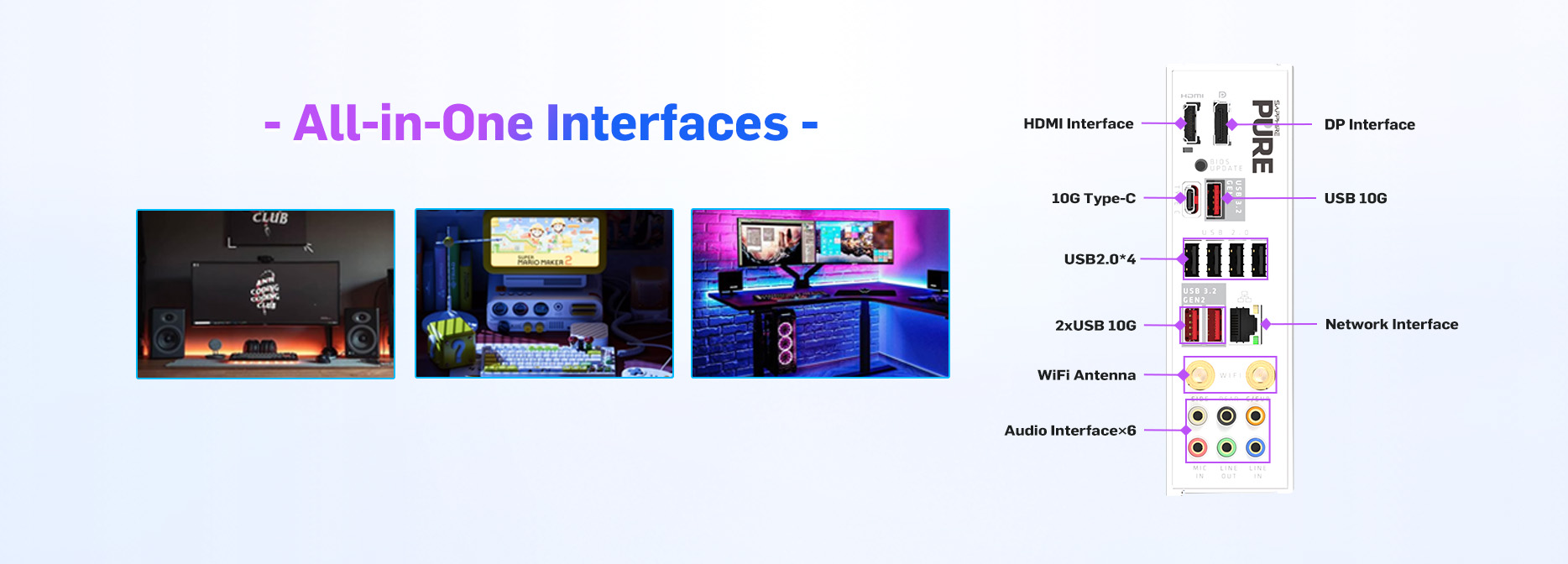

| Rear Ports | 1 × DisplayPort, 1 × HDMI ™, 1 × RJ45 LAN, 2 × Wi Fi Antenna One-click Flash BIOS Button, 4 × USB 2.0, 3 × USB 3.2 Gen2 Type A 1 × USB 3.2 Gen2 Type C, 6 × Audio Jacks |
| Storage | 1x PCIe 5.0 M.2, 2x PCIe 4.0 M.2, 4x SATA |
| Dimensions | ATX, 305x244mm |
| Debug LED | DRAM: Yellow, CPU: Red, GPU: White, Boot: Green |
