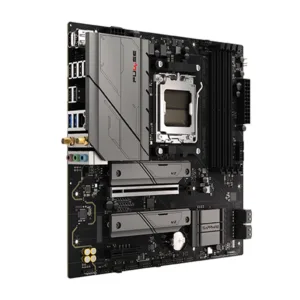

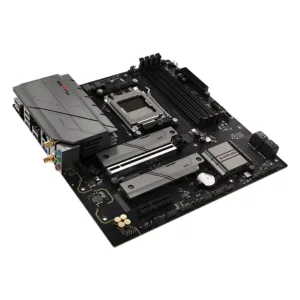

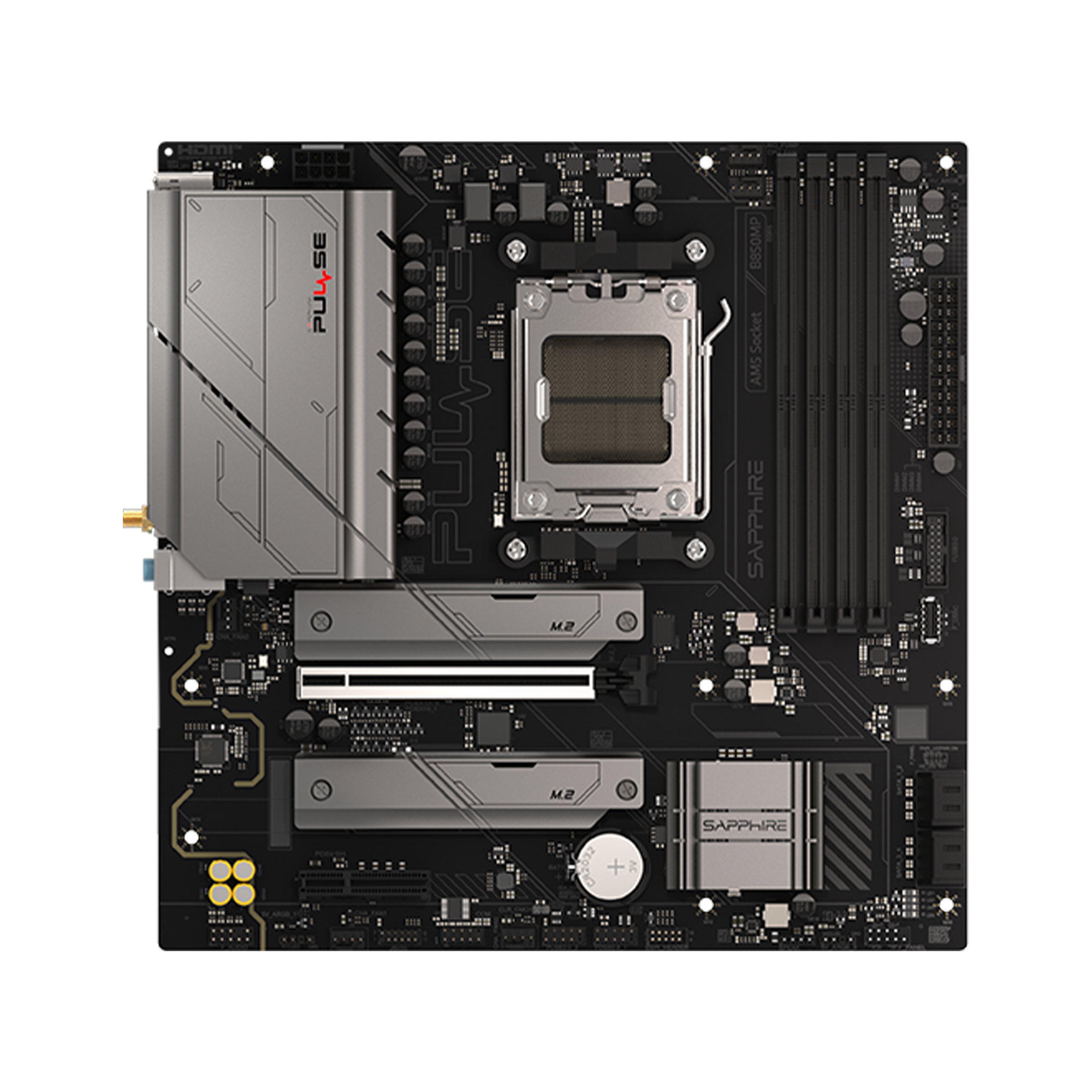

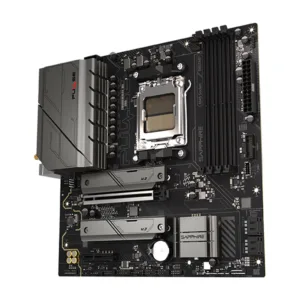

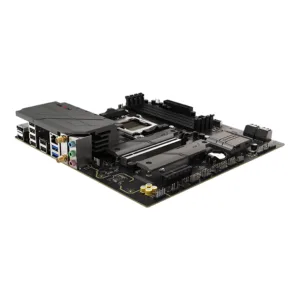

SAPPHIRE PULSE B850M WIFI MOTHERBOARD
The Sapphire PULSE B850M WIFI motherboard is engineered to support the latest AMD Ryzen processors with robust 7+2+1 phase power delivery and efficient cooling. It offers high-speed connectivity and performance with DDR5 memory support up to 7600 MHz and lightning-fast PCIe 5.0 M.2 storage capabilities.
Product Highlights:
- CPU Support: AMD AM5 CPU Support
- BIOS: SAPPHIRE CORE BIOS

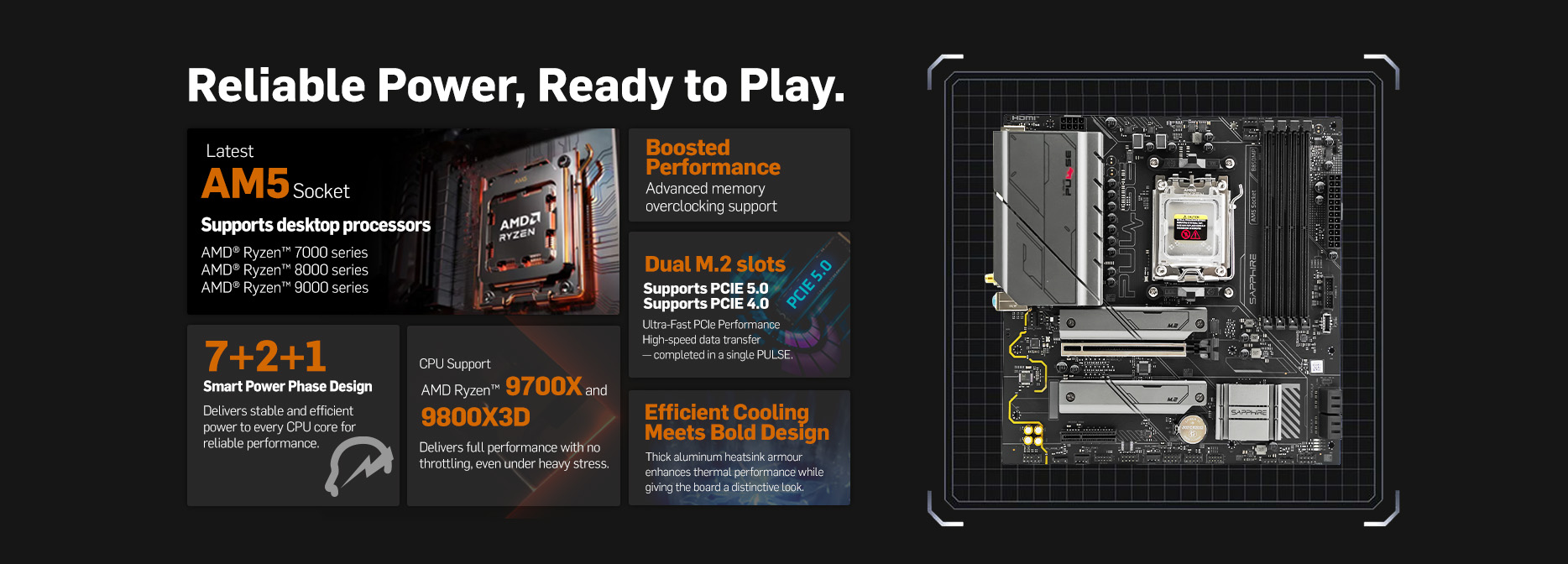

- Power Design: 7+2+1 Phase CPU Power, 60A Per Phase
- Cooling: Robust VRM, M.2 and PCH Cooling
- Memory: Dual Channel, 7600 MHz Memory OC
- Expansion: PCI Express 4.0 x16
- Storage: PCIe 5.0 M.2 Support
| Chipset | AMD® B850 |
| CPU Support | Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Memory Support | 4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 7600 MHz(OC) |

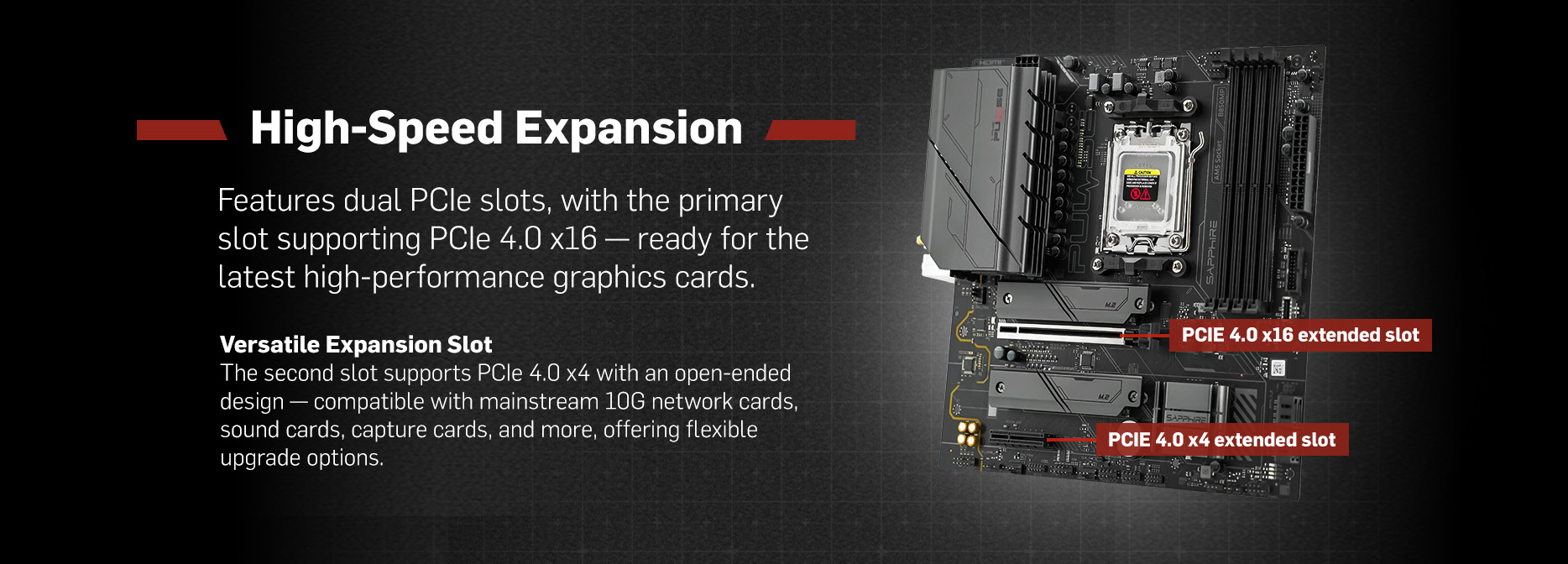

| PCI-E Expansion Slots | 1x PCIe 4.0 x16, 1x PCIe 4.0 x4 |
| Display Connector | DisplayPort x1, HDMI x1 |
| Audio | Realtek® ALC897 HD Audio, 5.1 Channel |

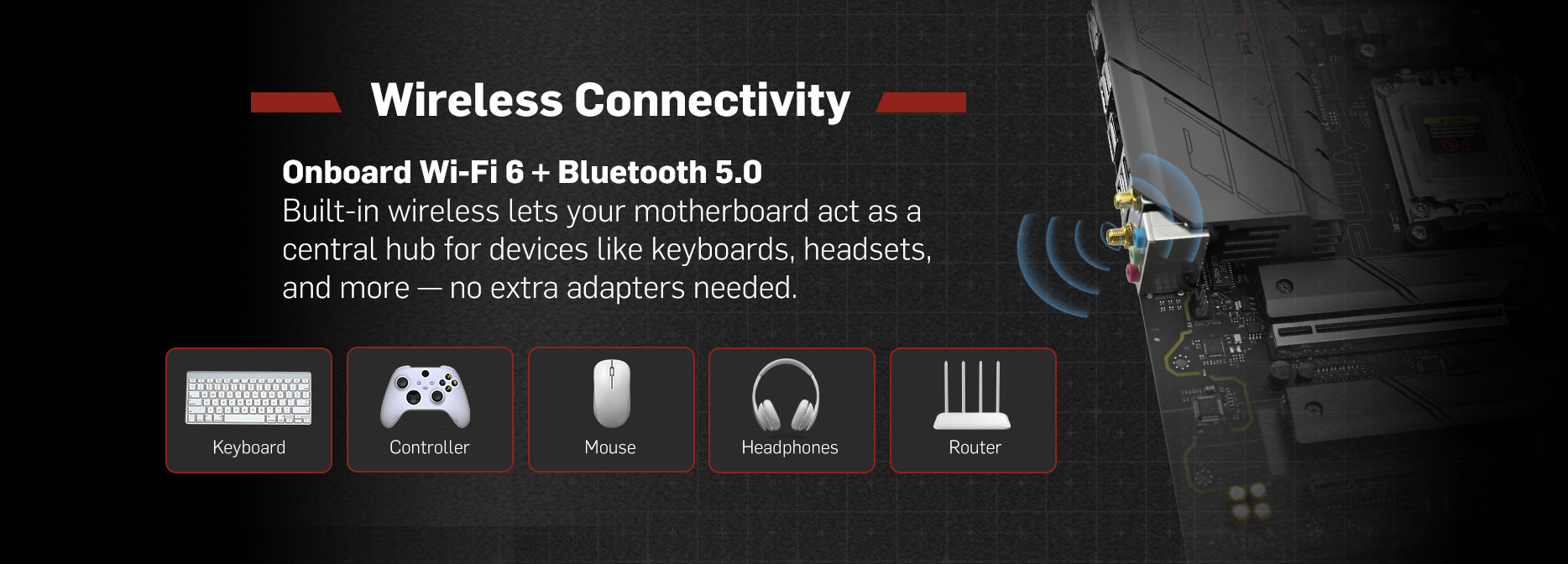

| Network | Realtek® RTL8125BG 2.5 Gigabit Ethernet M.2 WiFi 6 Module, Support 802.11 a/b/g/n/ac/ax, 2.4 GHz/ 5 GHz band, Bluetooth 5.3 Support |
| Front USB Headers | 1x USB 3.2 Gen1 (1 x Type-C), 1x USB 3.2 Gen1 (2 x Type-A), 2x USB 2.0 (4 x Type-A) |

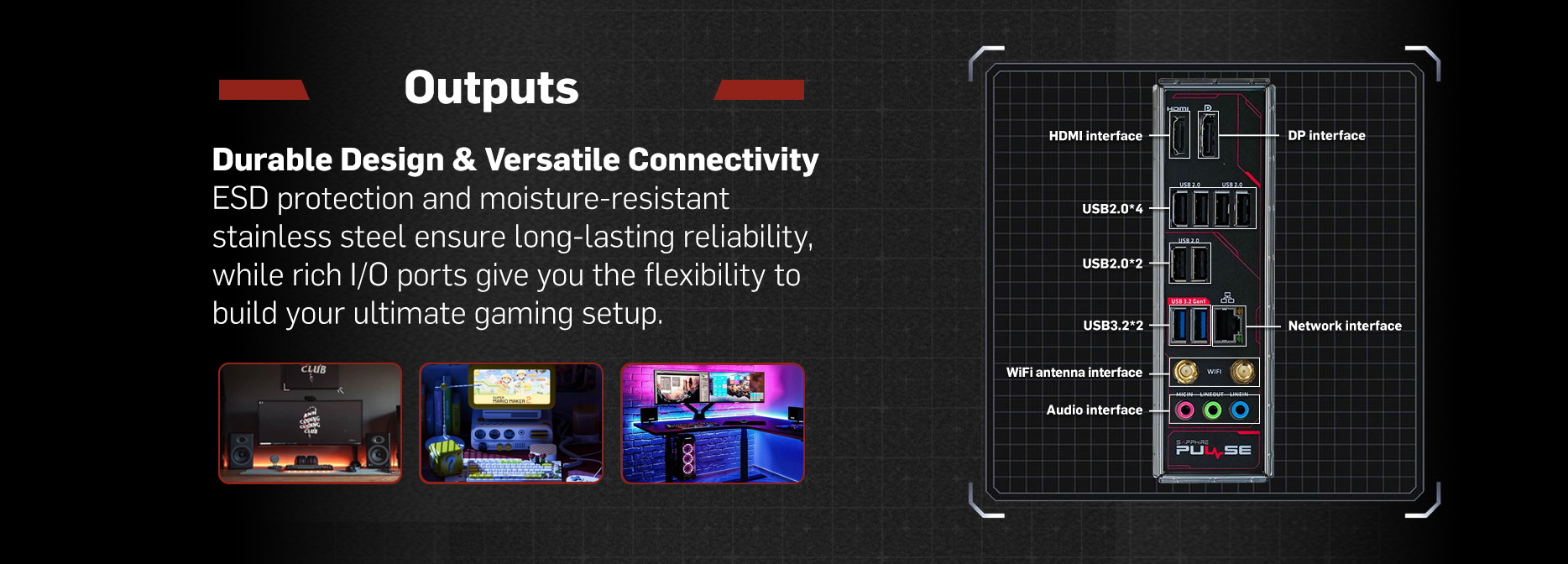

| Rear Ports | 1× HDMI™, 1× DisplayPort, 6× USB 2.0, 2× USB 3.2 Gen1 Type-A, 1× RJ45 LAN, 2× Wi Fi Antennas, 3× Audio Jacks |

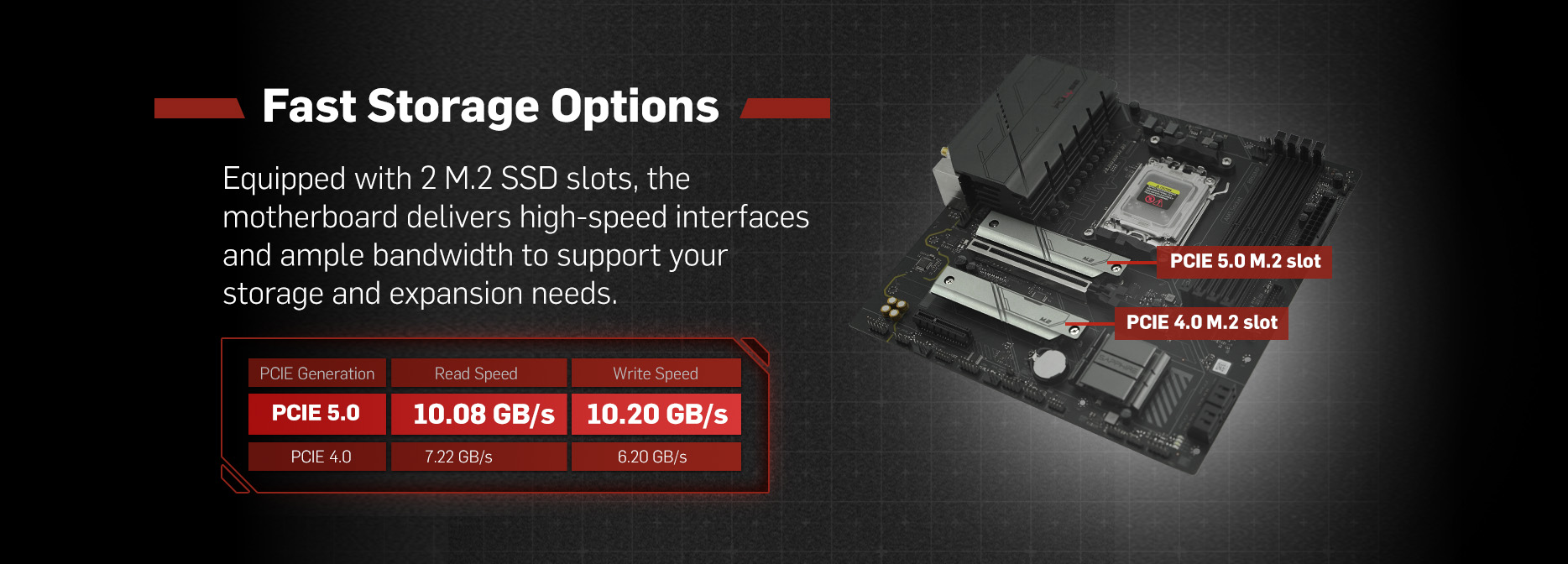

| Storage | 1x PCIe 5.0 M.2, 1x PCIe 4.0 M.2, 4x SATA |
| Dimensions | Micro-ATX, 244x244mm |
| Debug LED | DRAM: Yellow, CPU: Red, GPU: White, Boot: Green |
